Remark:
The air pump and computer is not included, please prepare it by yourself.The air pump should be above 0.6Mpa and computer should be WIN7 WIN10 32-bit/64-bit with PCI slot, But win7 is better
Features:
1. Feeding system:Precision screw transmission and mechanical arm alternatively feeding structure (closed loop self-test system)
2. Slotting system:Hard alloy planer
3. Notching structure:Notching by air cylinder
4. Flanging structure:Pneumatic flanging by air cylinder
5. Bending system:Double -pole alternate part-arc institution and patented alternative arc-extrusion structure
6. Driving motor:Servo motor 3 set; stepper motor 1 set
7. Software Control card Leetro Four -axis motion control card
8. Software system Auto drive / CBS4 auto bending system
9. Input voltage 220V 50Hz 3Kw
10. Air pressure 0.6-0.8Mpa
Application:
Industry: It is a fully automatic channel letter fabrication machine in sign making industry. Applicable in Channel Letters, Signboard, Resin Signs, Sign Box, etc.
Materials: Flat Aluminum Coil,Stainless steel, galvanized plate
| Scope of Application | Aluminum Channel letter,Stainless Steel Channel Letter |
| Notching | Yes |
| Flanging | -Yes- |
| Model | MBM-JH-V200 |
| Working Principle | Auto feed, Auto Slot(Cut), Auto Bend |
| Auto Adjust Cutting Depth By Software | |
| (Brand-New Technology owned by our Company) | |
| Processing Material | Flat Aluminum,Stainless steel, Galvanized |
| Material Height | 7.87in(200mm Custom height available) |
| Material Thickness | 0.12-0.047in(0.3-1.2mm) |
| Slot Degree | 45-135 Degree |
| Speed | 600-1000 Meters/8 Hour |
| Min Bending Diameter | ≧12mm |
| Voltage | 220VAC,Single phase |
| File Format | AI,Dxf,plt |
| Air Compressor | 0.6 Mpa |
| Warranty | 1 Year(not including blade and belt) |
| Package Details | |
| Machine Size | 71 x 23.6 x 60in(1800 x 600 x 1530mm) |
| Machine Weight | 1100lbs(500kgs) |
| Package Size | 74.8 x 31.5 x 69in(1900 x 800 x 1750mm / 2.73CBM) |
| Package Weight | 1276lbs(580kgs) |
Average Rating: 0

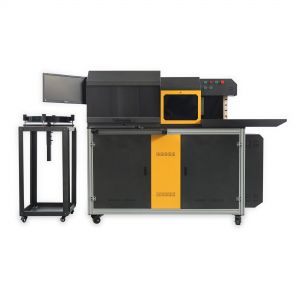

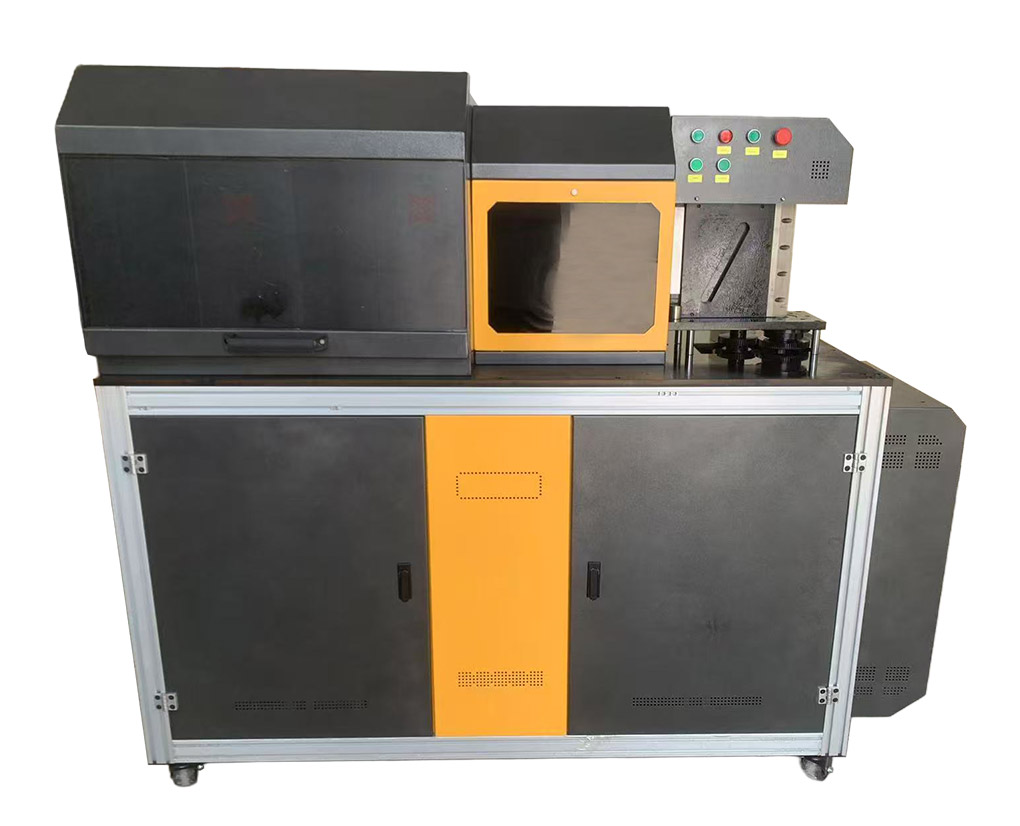

Multifunction Automatic CNC Metal Channel Letter Notching Flanging Bending Machine
