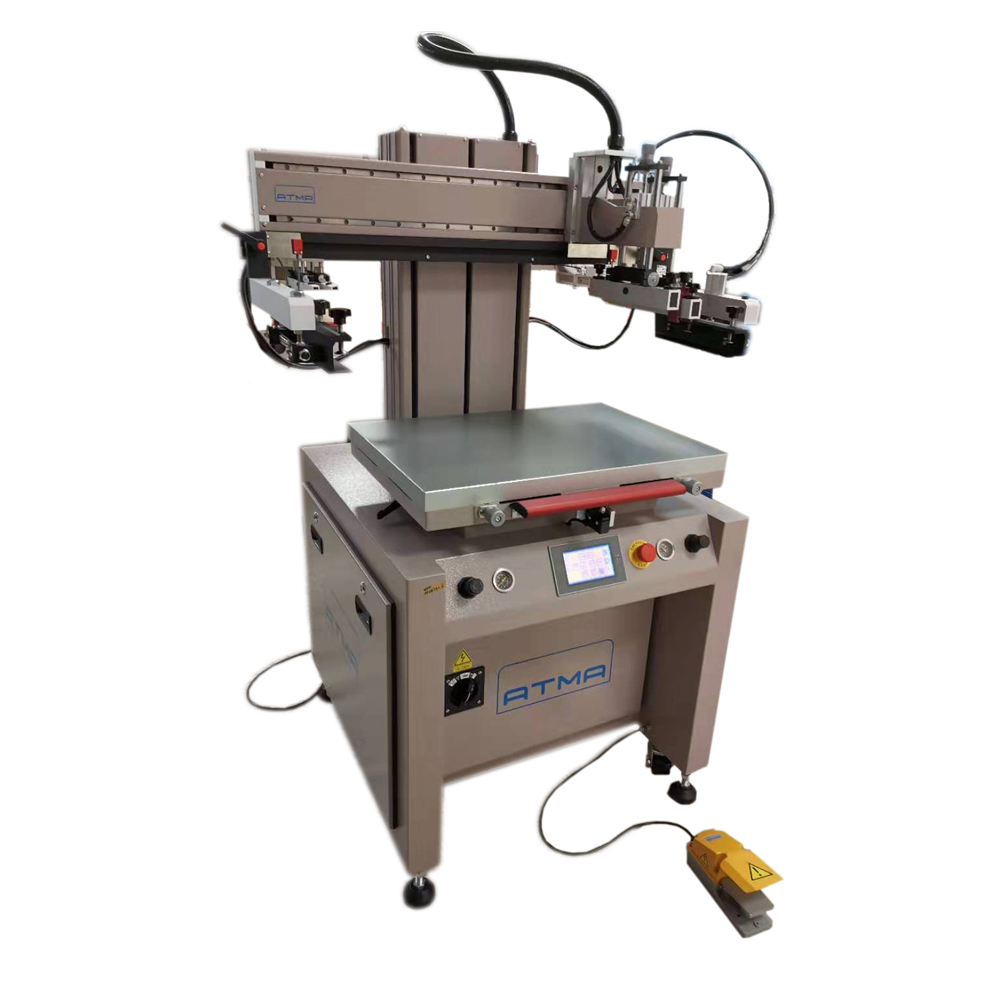

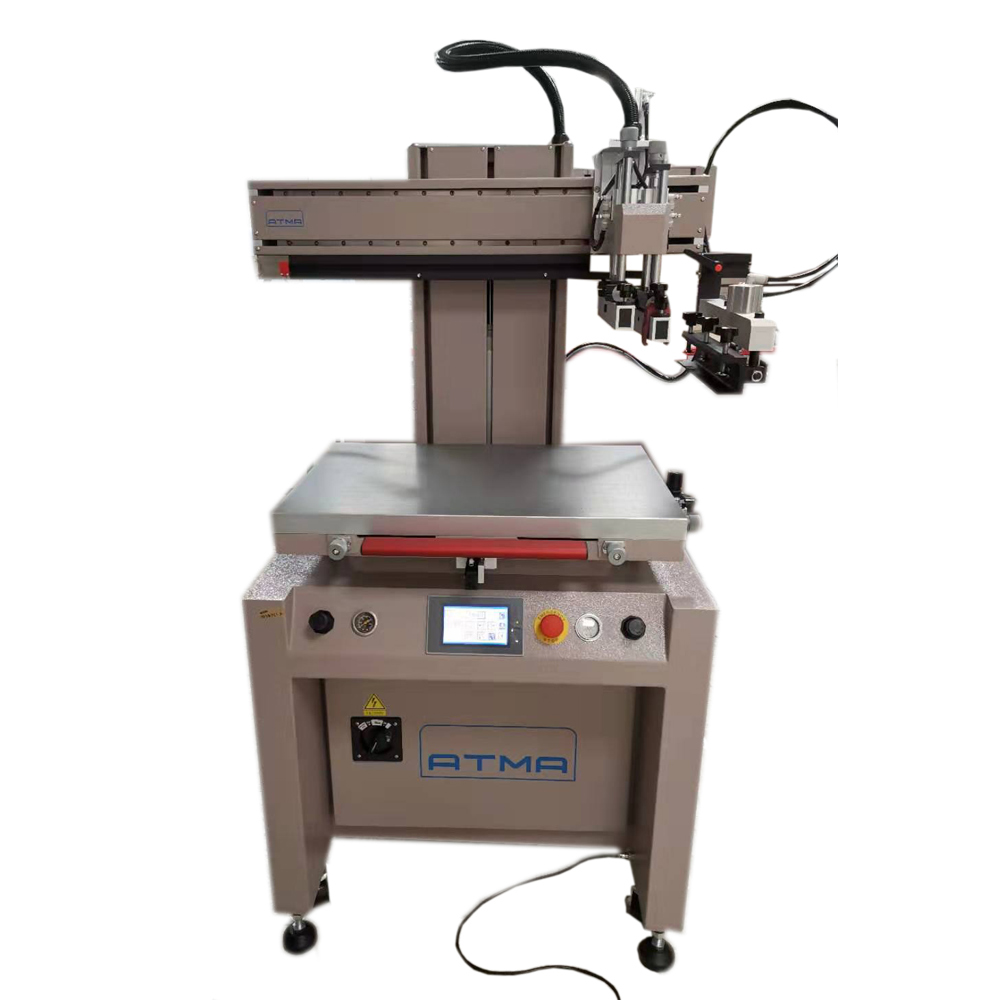

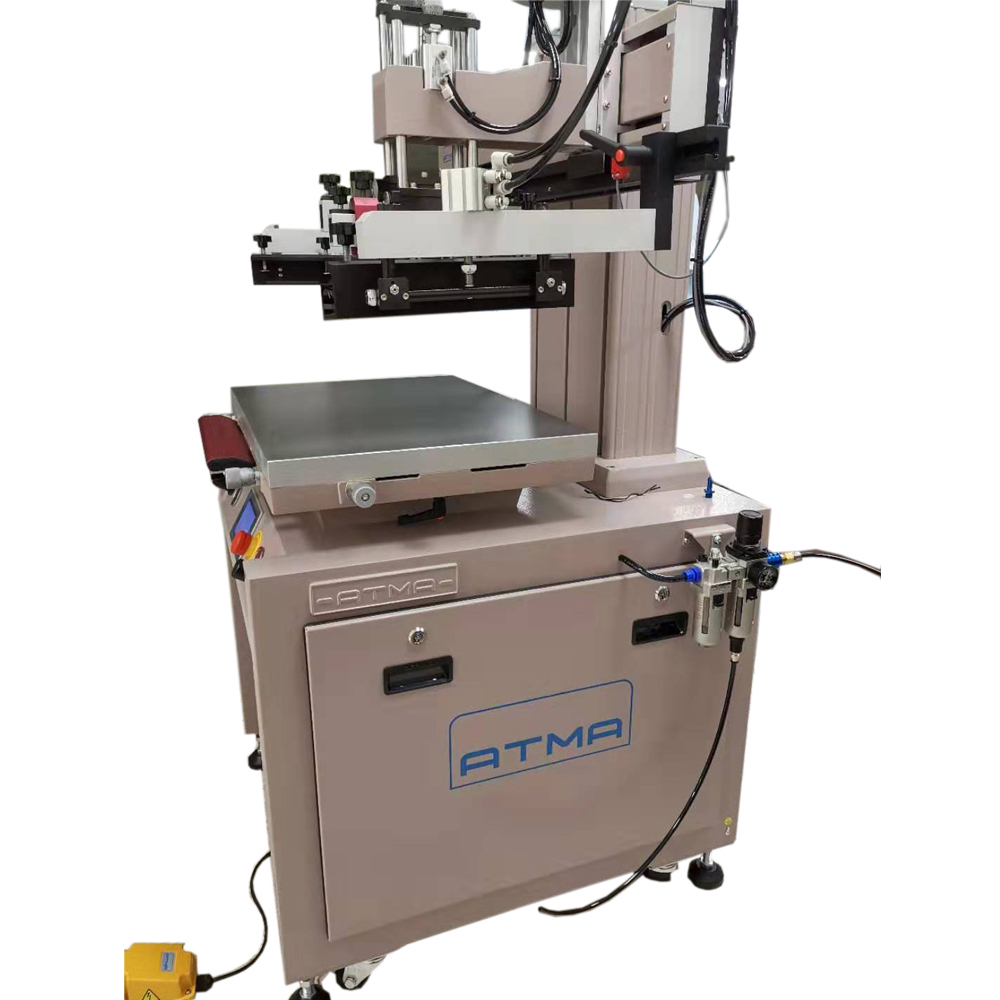

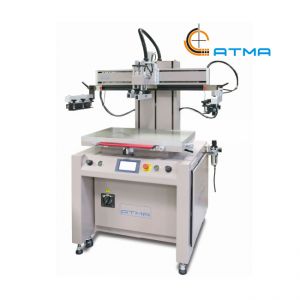

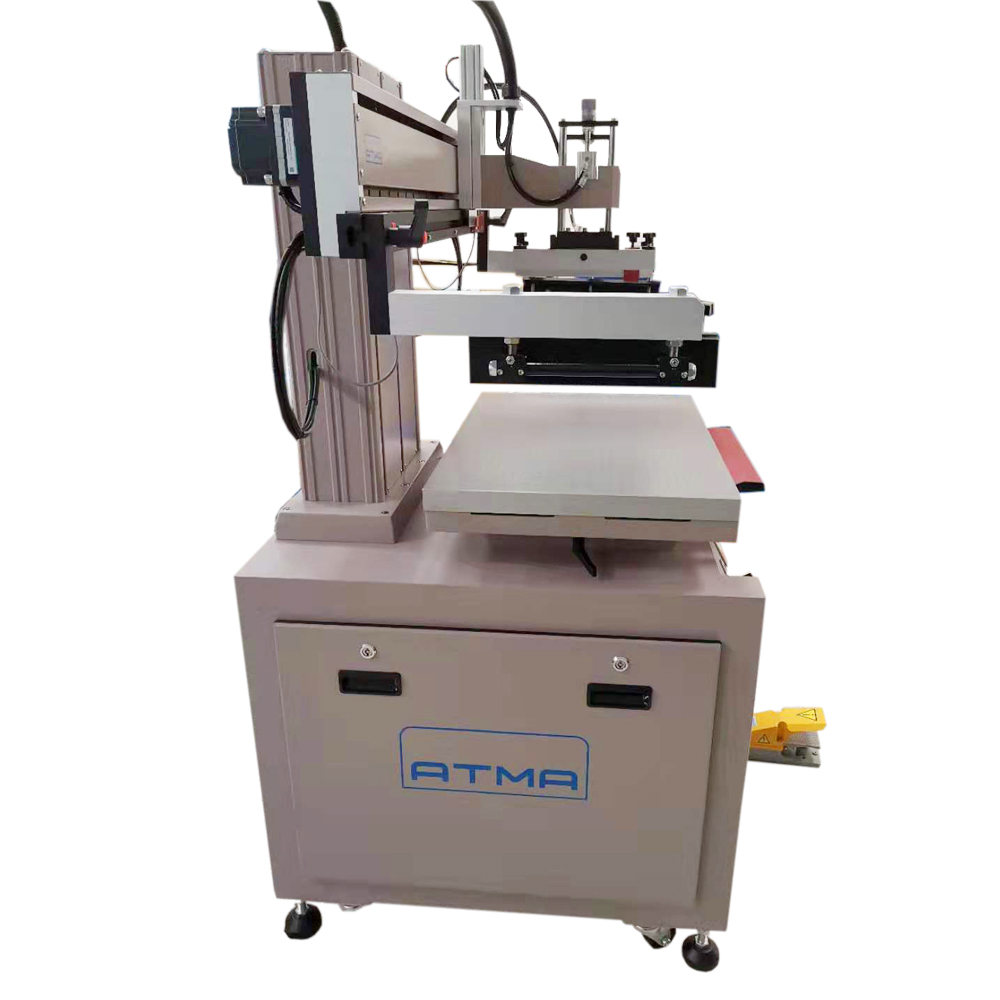

ATMA 220V 570W Pneumatic Flat Screen Printer Screen Printing Press
Suitable for industrial printing on membrane switch, adhesive logo sticker, nameplate,dashboard and so on.
Constantly explore medium size screen printer on market, it is acknowledged, application scope of medium size screen printer can be adapted by various industries, and enhance to spread out the market, such as Self-adhesive Sticker, Credit Card (VIP member card), Nameplate, UV varnish, leather, etcPrinting precision is not critically as same as optoelectronic industry, but various type of products printingQuick change screen and facilitate screen cleaning and precise registration are valued.
Feature:
1.Printing Structure:
1)Used Linear Guide Rails and adding integral formation of Aluminum alloyed structure for vertical section, raise durability and high precision to bear loading super force.
2)Adopted DC brushless motor with encoder for printing stroke, fast movement,
precise positioning, digital presetting printing stroke / speed.
3)Frame holder was designed to adopt active cantilever, strong structure with light
weight, movable for convenient adjustment.
4)All new design concept for the printing head, integrated structure of skew angle /
depth / pressure adjustment for squeegee / flood coater.
5)Screen up down is driven by cylinder with precise guide rail transmission to move
smoothly.
6)Attached with peel-off function, adjustable speed and height of peel-off, avoid to cause phenomenon of adhesive mesh after printing.
7)Attached with precise adjustment sliding base, enable to adjust table fine adjustment at front / rear / right / left direction, advantageous to multi-color printing.
8)Oil free FRL unit doesn’t generate the polluted mist emission, suitable for usage in.
2.cleaning room:
1)Six cycle printing modes can be selectable to suite various different substrates, fast and convenience to achieve printing efficiency.
3.Control Structure:
1)Utilized touch-screen control to obtain quick selection, setting, various printing stroke to fulfill various printing requirements.
4.Safety device:
Adding safety pressing bar, emergency stop switch to protect operator safety and security.
Specification:
Items: AT-60FA
Table size:19.7"x 27.6"/ 500(D)x700(W)mm
Max vacuum area:15.7"x23.6"/ 400(D)x600(W)mm
Max printing area:15.7"x22" 400(D)x560(W)mm
Max frame O/D size:27.6"x37.4" /700(D) x 950(W)mm
Table micro adjustment X-axis : ±0.4"/±10mm ; Y-axis :±0.4" /±10mm
Frame height:1"~1.6" /25~40mm
Substrate thickness: 0~1.2"/0~30mm
Printing table height: 36+1.6"/920+40mm
Peel-off height: 0.8"/20mm
Printing head speed: 5"~39"/125~1000mm
Productivity: 760 H/P(non-stop full speed full stroke)
Power source: 1Φ, 220V, 50/60Hz(single phase)
Compressed air pressure: 5~7kg/c㎡
Air exhaustion: 8.6 C/L
Power consumption: 0.57kw
Machine dimension: 43.3"x35.4"x63"/1100 x 900 x 1600mm
Machine weight: 715 lbs/325kg
Package:
Packing size:50" x 45" x 74.8"/1280 x 1150 x 1900 mm
Gross weight:946 lbs /430 kg
| Operating Method | Pneumatic |
| Brand | atma |
Average Rating: 0
| Packing Size | 50" x 45" x 74.8"/1280 x 1150 x 1900 mm |
| Gross weight | 946 lbs /430 kg |
