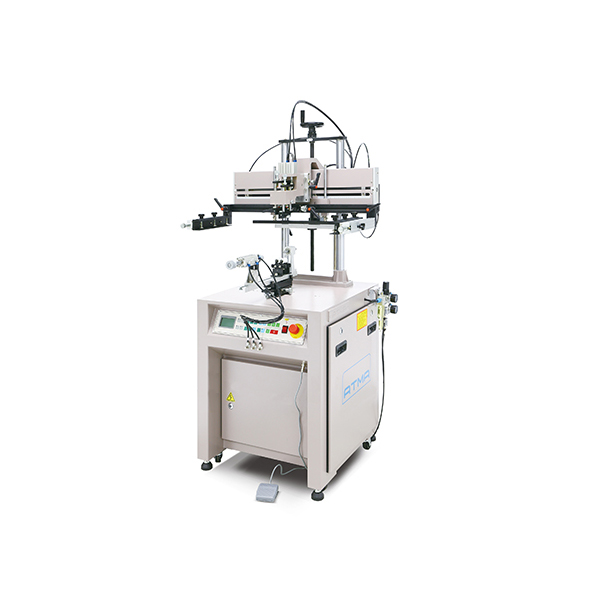

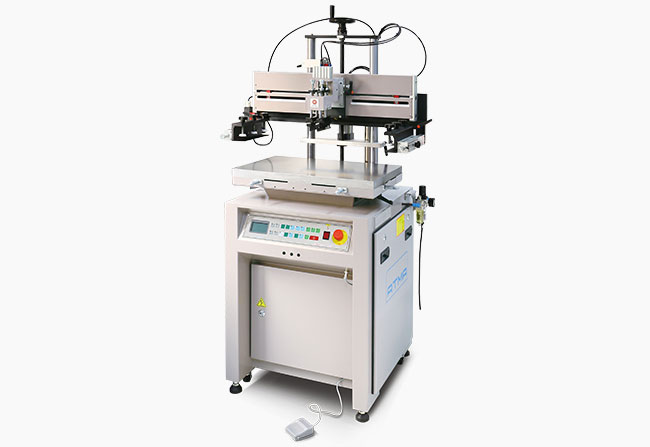

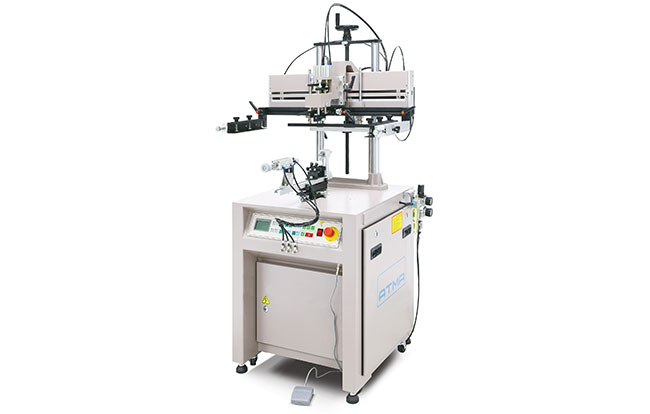

ATMA Pneumatic Mini Flat/Curve Screen Printer Screen Printing Press
Suitable for printing various products with small size, light weight and flexibility, quick exchange substrate.And Suitable for screen printing cylindrical, conical, oval shaped and curve with small diameter, such as cup, mug, bottle, pipe, tube, can and so on.
Features:
Screen vertical up down to prevent ink flow to lateral side.
Three-point screen micro adjustment, table can be adjusted in direction front / back / right / leftward to facilitate multi-layer printing.
Optimal closed chamber buffer device to eliminate rapidly vibration phenomenon upon collision.
Safety insertion pin facilitates to exchange squeegee / flood coater / screen and cleaning residue ink.
Design of the retractable Print Head carriage ensures centric position for printing.
CPU control, selectable various printing cycle mode corresponding to diverse printing requirement.
E-stop pressing plate is used to protect operator safety and decrease defective rate.
Specification:
Model: TY-500FABT
Substrate Thickness: 0.1〜80mm
Max Productivity: 820 P/H
Max Printing Area:
Flat:11.8"x18' /300 x 460mm Curve: 2"-5.7"(Φ50-Φ145mm)
Table Size:15.7"x23.6"/400 x 600 mm
Vacuum Hole Diameter: ϕ 0.06"/ϕ 1.5 mm
Power Consumption: 0.28KW
Air Exhaustion: 165.3L/min
Screen Up Level:4"/100mm
Max Frame O/D Size: 13.8"x25.6"/350 x 650mm
Frame Micro-adjustment front / backward direction: 0.6"/15mm
Cross Base Micro-adjustment:0.6"/15mm
Package:
Packing size:41" x 36" x 74.8"/1040 x 920 x 1900 mm
Gross weight:660 lbs /300 kg
| Operating Method | Pneumatic |
| Brand | atma |
Average Rating: 0
| Packing Size | 41" x 36" x 74.8"/1040 x 920 x 1900 mm |
| Gross weight | 660 lbs /300 kg |
