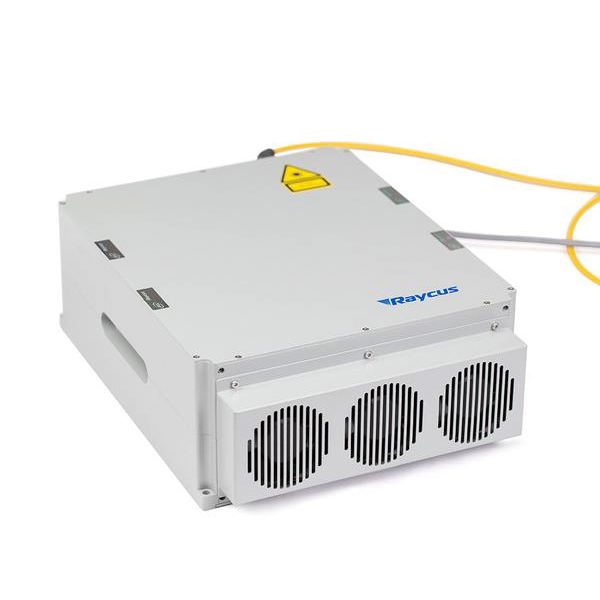

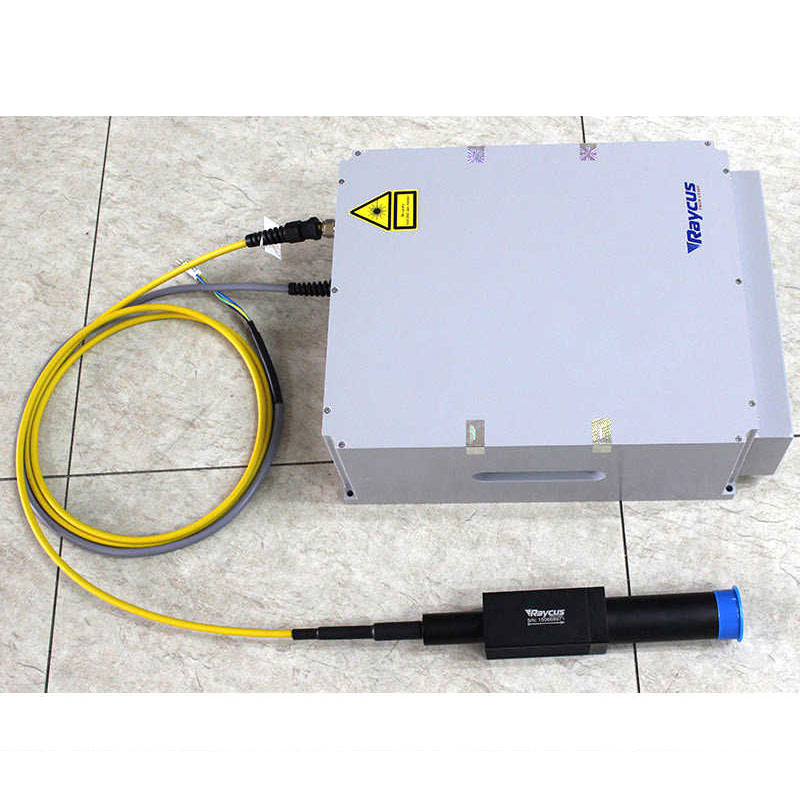

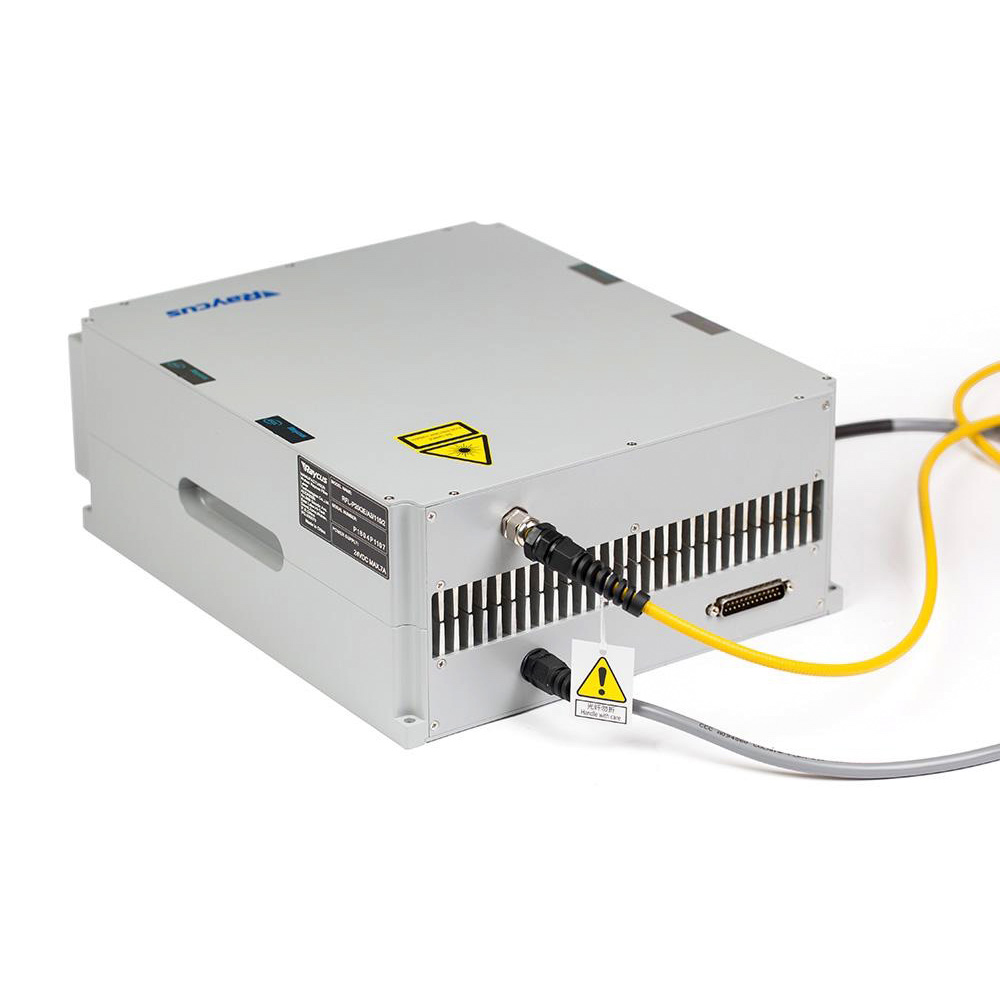

Raycus Laser Source 20W-50W Q-switched Pulse Fiber Laser 1064nm for Fiber Laser Marker
Q-switched fiber lasers are widely used in industrial marking and micromachining. This series of pulsed fiber lasers are characterized by high peak power, high single pulse energy, and optional spot diameter. They are widely used in non-metallic, high-inverse gold, silver, copper, aluminum and non-high-resistance materials. Marking, precision machinery, graphic marking, thins plate precision cutting, drilling and other fields.
| Specification | |||
| Pulsed fiber laser | 20W | 30W | 50W |
| Wavelength(nm) | 1064 | ||
| Polarization | Random | ||
| Optical isolator | Yes | ||
| Nominal average output power (W) | ≥20 | ≥30 | ≥50 |
| Single pulse energy (mJ) @20kHz | 1@30kHz | ||
| Beam quality(M2) | <1.8 | ||
| Beam Diameter(mm) | 6～8 | ||
| Pulse duration(ns)@20kHz | <120@30kHz | ||
| Pulse repetition rate(kHz) | 20-60 | 30-60 | 50-100 |
| Output Power Tunability(%) | 10-100 | ||
| Output Fiber Cable length(m) | 2 | ||
| Working voltage(VDC) | 24±1 | ||
| Power consumption(20°)(W) | 200 | 300 | 400 |
| Cooling | Forced Air Cooled | ||
| Dimension W×D×H(mm) | 260×391×120 | 396×360×125 | |
| Operating temperature | 0°～40° | ||
| Store temperature | -10°～60° | ||
| Humidity | 30%～85% | ||
Details:
Application:

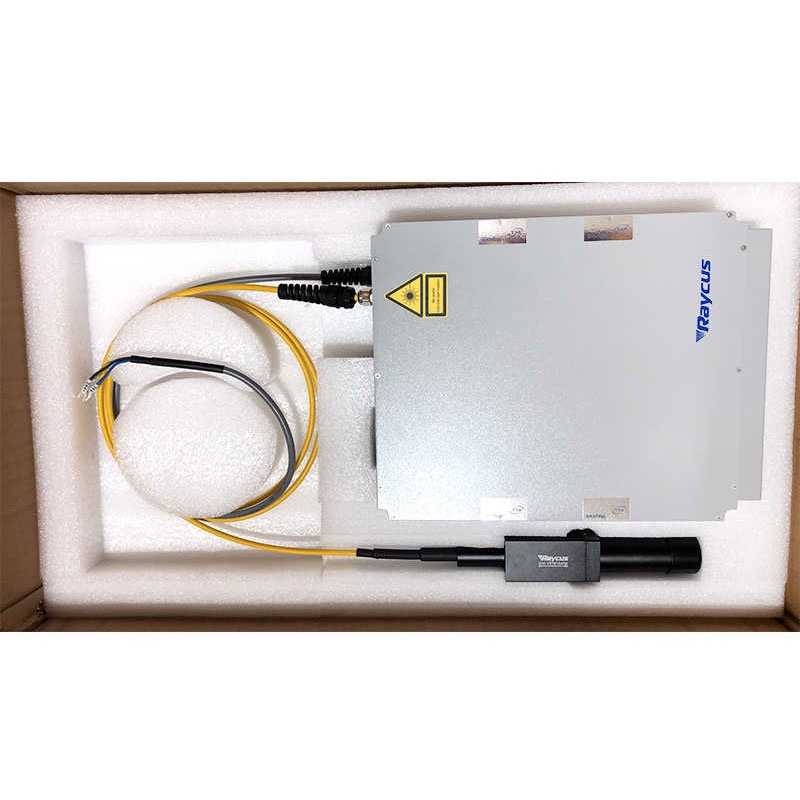

Packaging:
Average Rating: 0
| Machine Dimension | 391mm x 260mm x 120mm (15.4in x 10.3 x 4.7in) |
| Machine Weight | 18kg (39.7lb) |
| Package | Carton |
| Packing Size | 600mm x 400mm x 200mm (24in x 16in x 8in) |
| Packing Weight | 20kg (44lb) |
