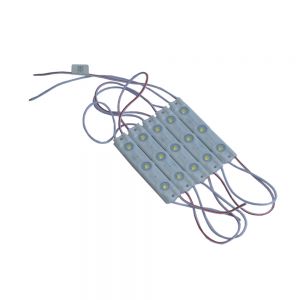

Product description:
1. the LED module uses the high quality Samsung 2835 light source with high brightness, color uniformity, characteristics of antistatic ability etc.;
2. the product uses DC12V power supply, constant voltage circuit drive mode, single lamp can be cut;
3. configuration of flat lens, appearance, PCB with high conductivity aluminum substrate, good heat dissipation effect;
4. using PVC module package injection process, flame retardant grade UL94V-0, grade IP65.
Application sites:
mainly used in 8-18cm advertising signs word light boxes, single side advertising light boxes, etc.
Description of product:
| Voltage(V) |
DC 12 |
Appearance color |
White / Beige PVC |
| Current(mA) |
125 |
Connection line material |
60MM UL1007 24AWG |
| Power(W) |
1.5 |
Color of connecting line |
Positive: gray;
negative: white |
| Emitting angle |
120° |

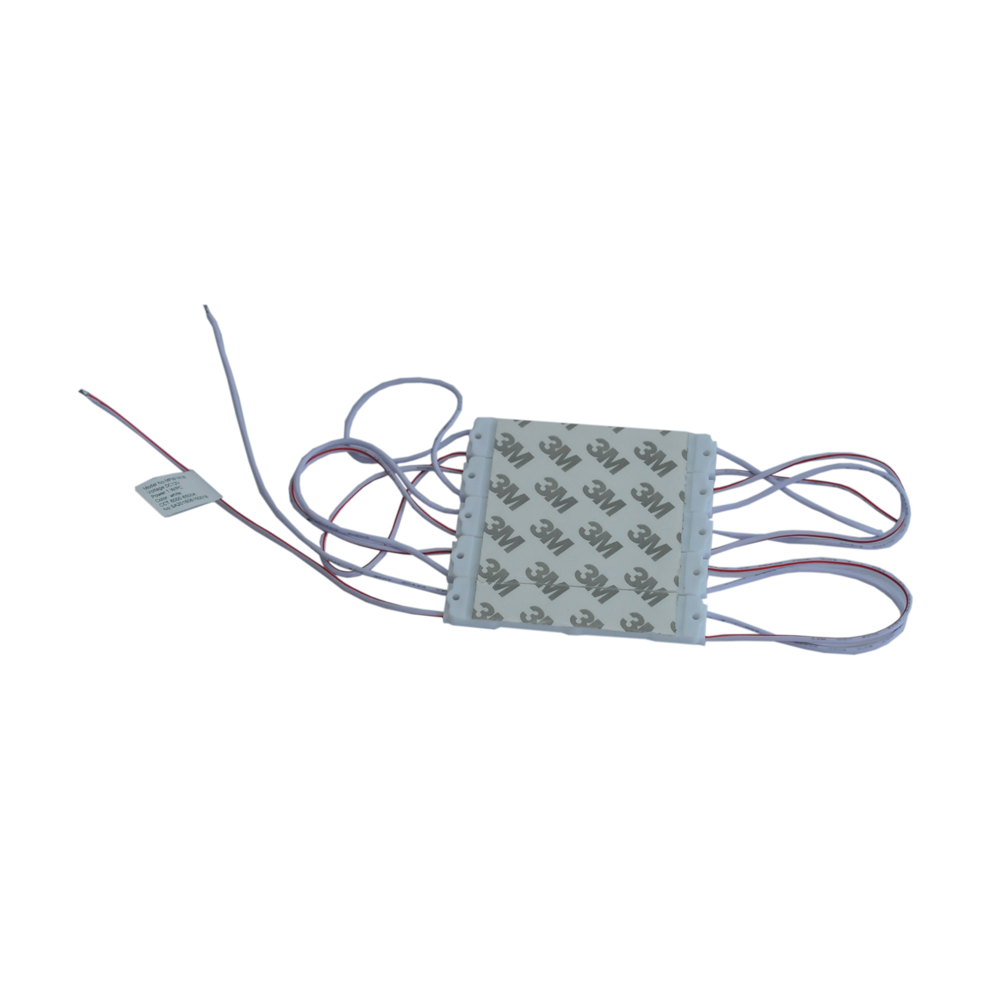

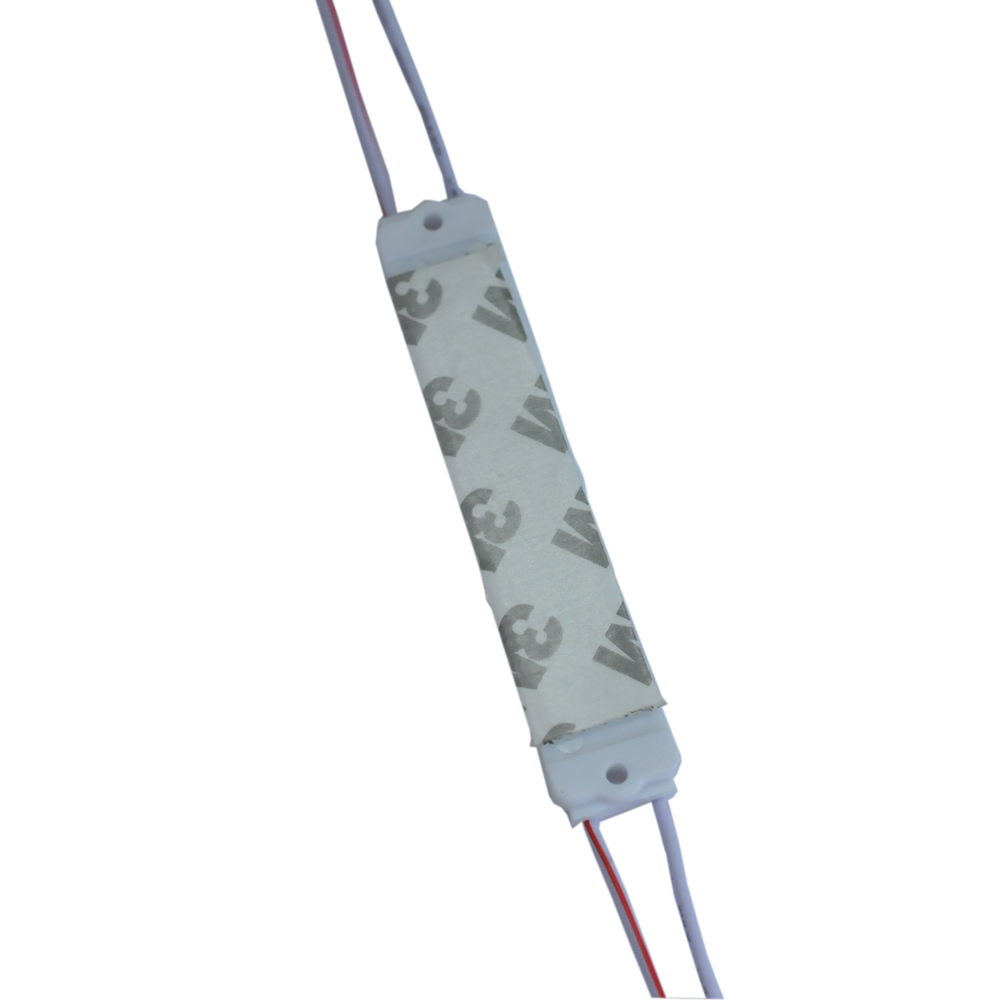

Back glue |
White 3M foam |
| Luminous(lm) |
125 |
Cascade quantity(pcs) |
20 |
| Dimension(mm) |
78*15.2*6.5 |
Weight (20PCS) |
205g |
| IP type |
PVC |
Operating temperature |
-40~60℃ |
| Emitting color |
natural white, cold white |
Storage temperature |
-40~80℃ |
| IP rate |
IP66 |
Warranty |
3 years |
| LED Qty(pcs) |
3LED/PCS |
|
|
Parameters of light source:
| Type of led |
Samsung 2835 |
| Emitting angle |
120° |
| Life span |
>30000H |
| CRI |
>70 |
| CT/WL of led |
White, 7000-8000 k |
| Luminous flux |
White |
| Brightness |
40-45 lm |

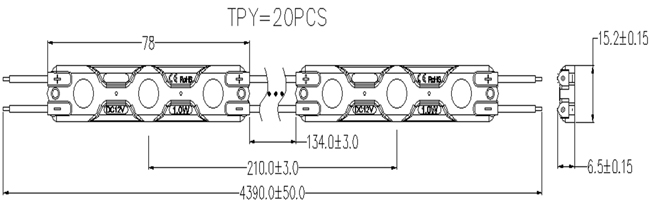

Schematic diagram of product size (mm)

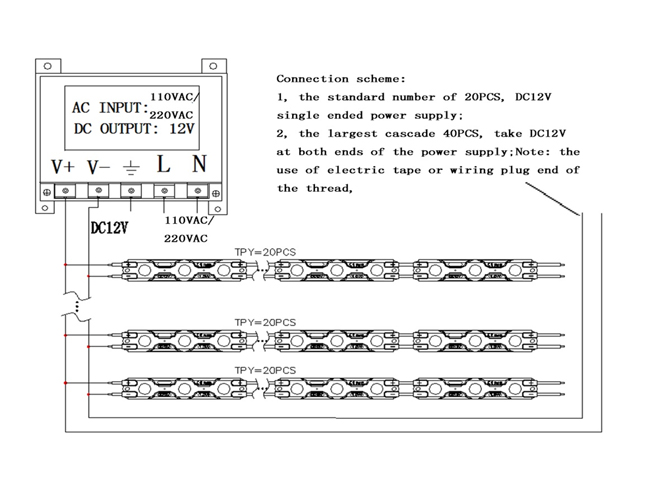

Schematic diagram of product installation
Product application program:
|
The lamp arrangement scheme
|
The word stroke width
(mm)
|
The thickness of word
(mm)
|
The word size(mm)
|
The measure of area
(m²)
|
The maximum distance between columns
(mm)
|
|
The installation density
（(PCS/m²)
|
| 1 |
110 |
100 |
885x535 |
0.47 |
140
|
17 |
36 |
| 2 |
82 |
80 |
665x415 |
0.28 |
120 |
16 |
57 |
| 3 |
130 |
120 |
1060x665 |
0.71 |
160 |
20 |
28 |
| 4 |
151 |
150 |
1225x770 |
0.94 |
180 |
20 |
21 |
| 5 |
188 |
180 |
1530x960 |
1.47 |
200 |
21 |
14 |
Product application program:
(1). Power line using 2x1.5mm above empty cable (according to the load current power line selection), if the module power line had to be lengthened to choose the wires of 0.75mm above it /18# specifications, in order to avoid overload leads to power cord fever, lead to adverse consequences.
(2). Single module lamp can be cut, when the connection module short, first with oblique mouth clamp center cut two module of power line, decortication 10mm or so and the corresponding color (gray line is positive, the white line anode) wire twisted into a stock, then the special waterproof tape insulation waterproof processing, final inspection power wiring head guide continuity and reliability, be the unarmed cannot wire from pull the wiring head that is appropriate.
(3). Module installed first module at the bottom of the gum from the paper tore affixed to or advertising light boxes mark preliminary fixed, then the 1 single ST2.5x10mm tapping screw locking reinforcement, the module both sides of glass glue fixed;
(4). Terminal module threads need to use waterproof tape or wiring waterproof plug for water treatment, to avoid short circuit damage to the product.
(5). A standard module cascade 20pcs, take single ended power supply; maximum cascade 40PCS, taken at both ends of the power supply, the connection do not excessive, avoid wire load current is too large and damage to the product.
(6) module can not be completely exposed in the outdoor use, do not live touch, live operation.
