Features:

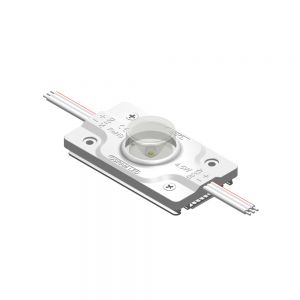

• High brightness ORSAM leds with heat sink.
• Side lighting module,40*15 degree beam angle. High light transmittance Optical lens.
• Moisture-proof, water-proof,dust proof and impact resistance.
• Professional multi-optic design,best brightness,no bright dots.Lighting average over normal modules.
• IP65 protection level.
• Nice structure and injection molding process. Remarkable multiple optic technique.
• RoHS standard of all raw materials.
• Long lifespan and low failure rate.
•3 lights cut
Detail:
| Application |
Thickness of L.Box (mm) |
Size of L.Box(mm) |
Distance of Row (mm) |
Distance of Column
(mm) |
Qty needed
(PCS) |
Surface Lux(LUX/m²) |
| Best Solution |
200 |
2000x1000 |
150 |
13 |
6.5 |
500-900 |
| Solution 1 |
250 |
3000x1000 |
160 |
19 |
6 |
700-1000 |
| Solution 2 |
250 |
2500x1500 |
160 |
32 |
8.5 |
900-1300 |
Application:

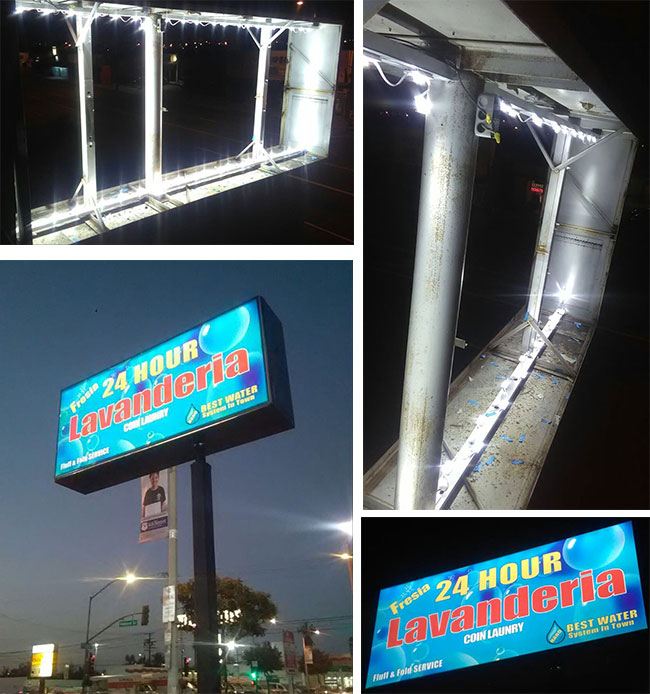

• Advertisement signs the double-sided light box.
• LOGO & Letters the double-sided light box.
• Advertisement Light boxes and the double-sided light box.
• Landscape, commercial, home and stage decoration.
Installation and Notes:
(1)Use the power cable with 2x1.5mm²above (Select appropriate power cable based on the loading current ). Must select 0.75mm² / 18 # wire as power lines if be lengthened in order to avoid overloading bring overheat, causing adverse consequences;
(2)Single module is cuttable. Please cut the power cable first with Diagonal pliers in middle between two modules when module are connected, peel cable skin around 10 mm and connected with corresponding color (white red line is positive , white-blue lines is negative). It should be well insulated with using special waterproof tape , finally check power conduction. It will be good only the cable will be pulled out with hands
(3) Please take out the releasing paper on backside at installation and stick in lighting box and fix them first. And mounted with two pcs ST2.9X12mm screw or with glass glue at two ends.
(4)The end module need to be well insulated with waterproof tape or waterproof connector to avoid short-circuit and damage the product;

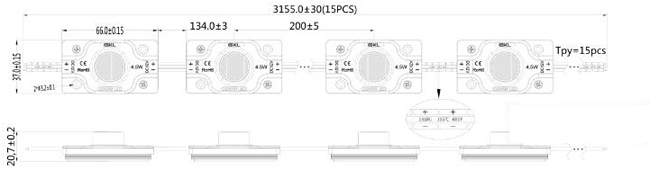

(5) Standard cascade is 15PCS, DC12V single powered. Do not over-connect and avoid damage for excessive line overload current;
(6) The modules can not be used in outdoor. Do not operate or touch when powered..
Notes:
Please use power supply with safety certificated(short circuit, overload and over current protection)The final interpretation of the product made by GK lighting all subject to change without notice.
