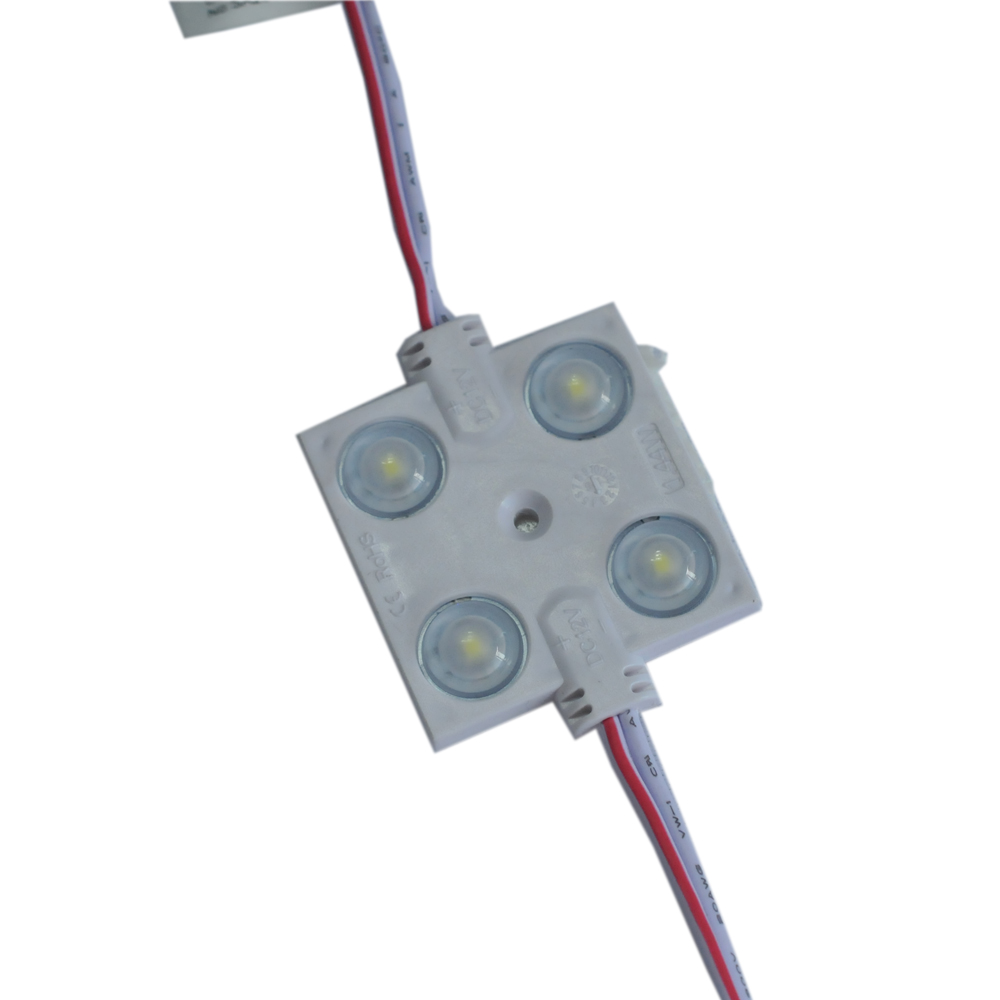

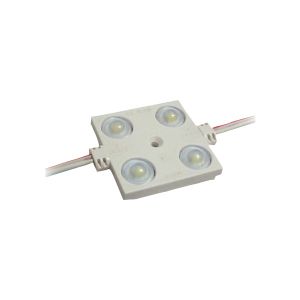

Description:
1. The use of high-quality 2835 light source with high brightness, color uniformity, characteristics of antistatic ability etc.
2. Using DC12V power supply, linear constant current drive mode.
3. The configuration of optical lens, beautiful appearance, PCB high conductivity aluminum substrate, good cooling effect.
4. The module uses the fireproof material, the fire protection grade can reach IP65, the protection grade U94V-2.
Application sites: Suitable for 8-25cm advertising signs, advertising light boxes, etc.
Parameters of product:
|
Specification Form
|
|
Voltage(V)
|
DC 12
|
|
Current(mA)
|
120
|
|
Power(W)
|
1.44
|
|
Emitting angle
|
160°
|
|
Luminous(lm)
|
130-140
|
|
Dimension(mm)
|
46 x 36.5 x 7
|
|
LED Qty(pcs)
|
4
|
|
Color of the shell
|
Milk-white
|
|
IP rate
|
IP65
|
|
Connecting cables
|
UL1007 18#
|
|

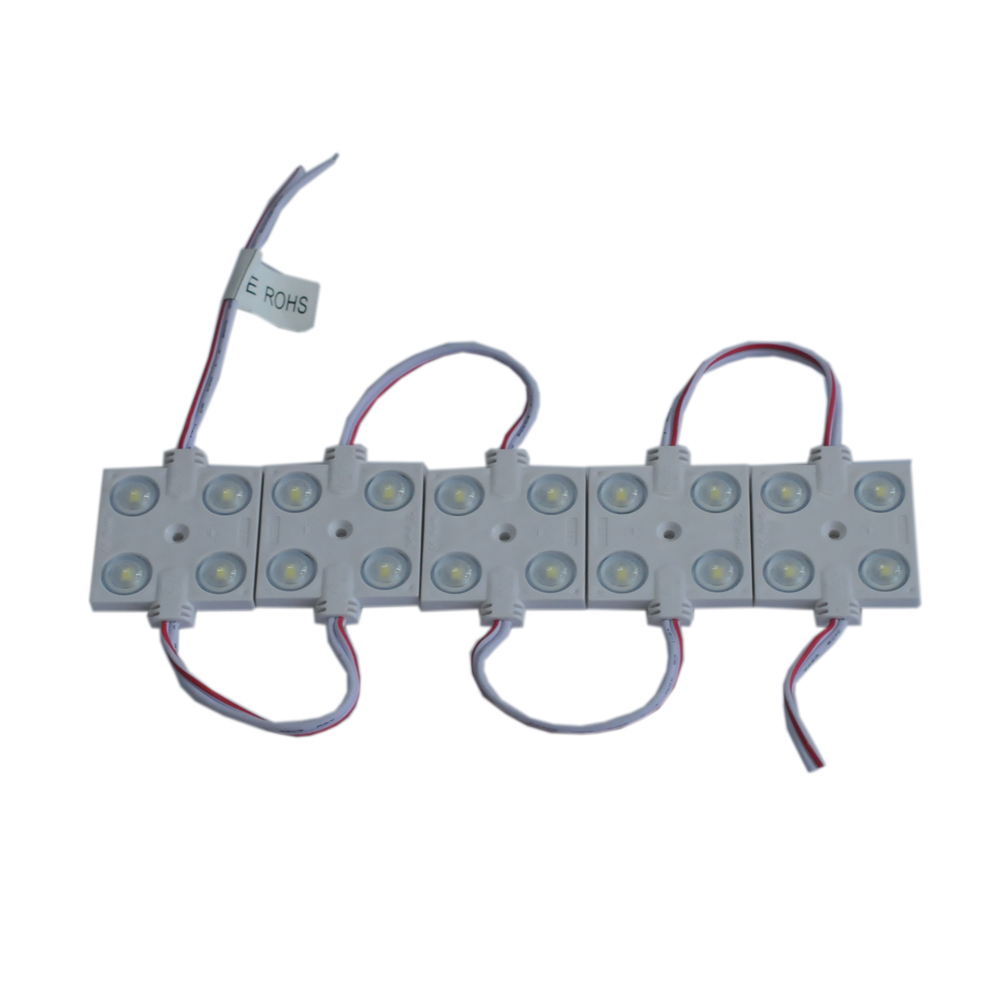

Cascade quantity (pcs)
|
20
|
|
Weight (20pcs)
|
222g
|
| Fix screw |
ST2.5x10mm |
|

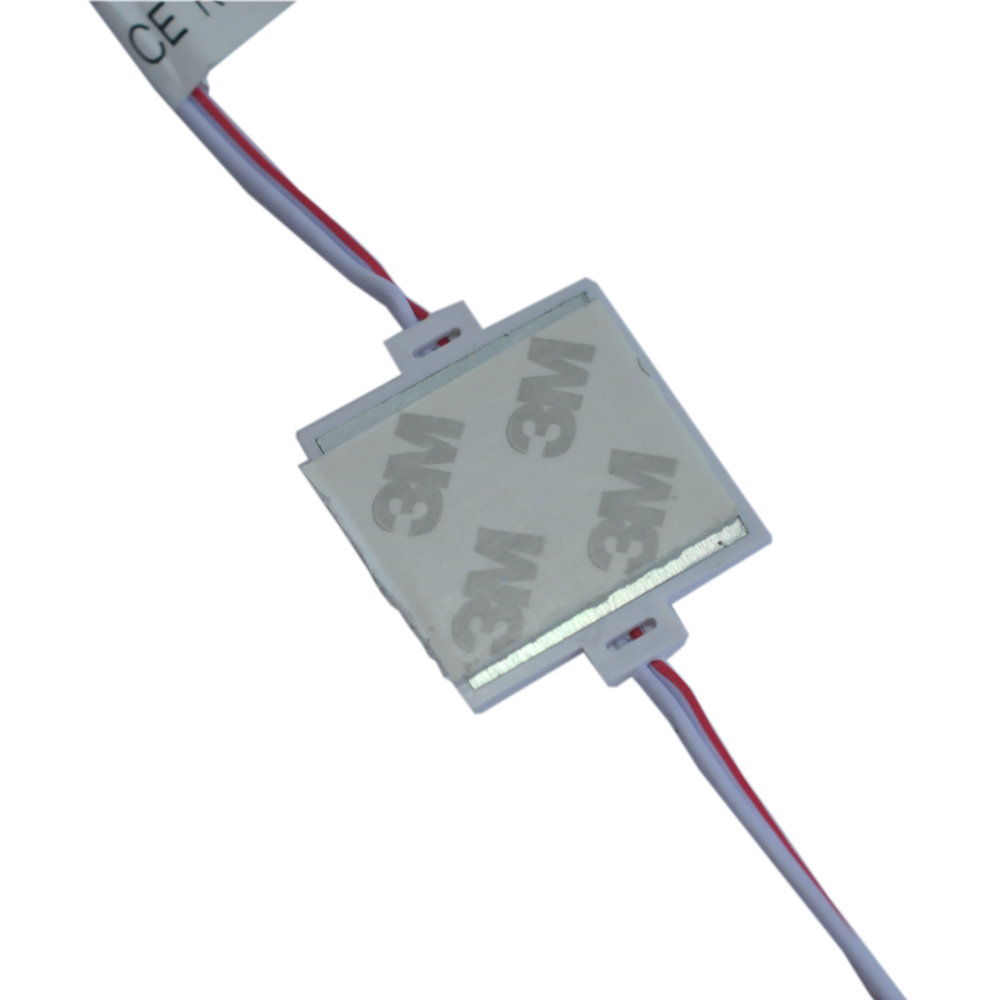

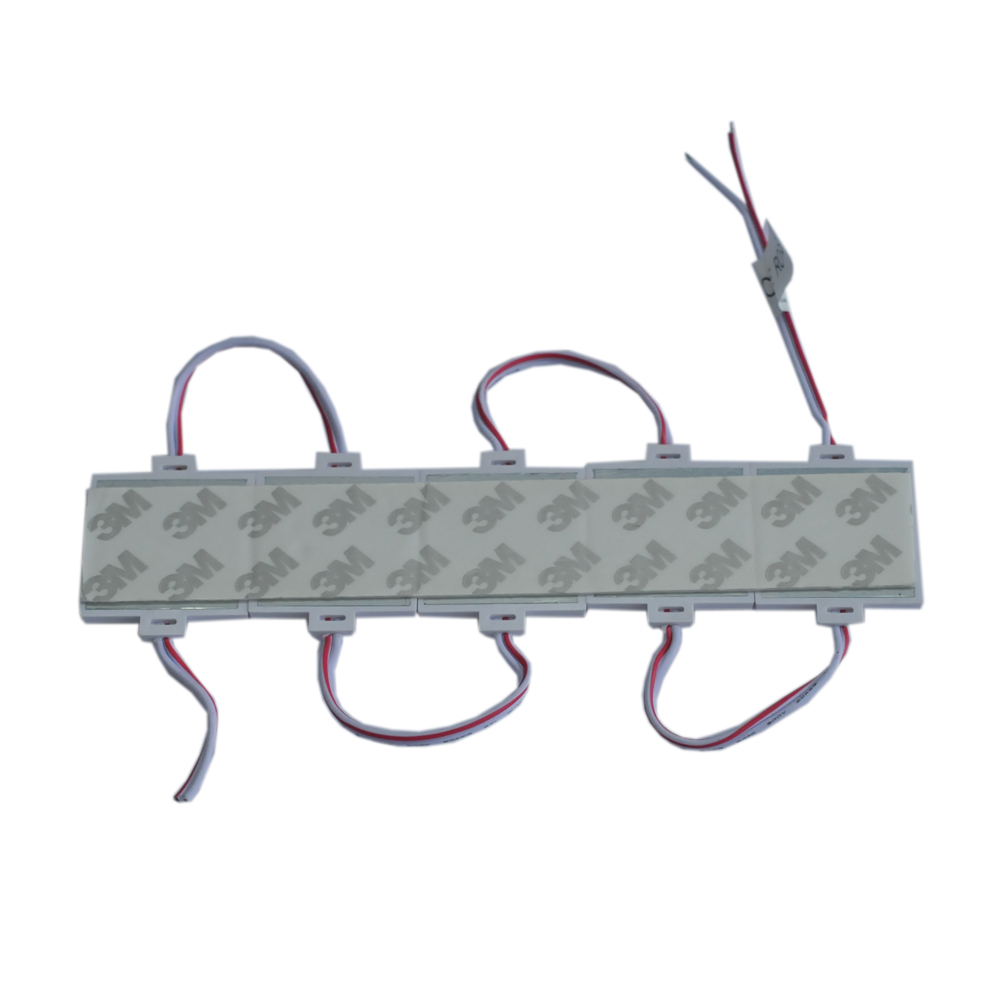

Back glue
|
3M white gum
|
|
Operating temperature
|
-40~60°C
|
|
Warranty
|
3 years
|
Parameters of light source:
| Type of led |
2835 |
| Life span |
>30000H |
| CRI |
>70 |
| VF |
3.0-3.3V |
| CT/WL of led |
warm white |
natural white |
cool white |
| 2800-3300K |
6000-7000K |
8000-12000K |
| Luminous flux/brightness |
warm white |
natural white |
cool white |
| 35-40lm |
35-40lm |
35-40lm |
Dimension of the product(unit:mm)
Installation and cable connecting diagram:
Remarks of installation and application:
(1). Power line using 2x1.5mm above empty cable (according to the load current power line selection), if the module power line had to be lengthened to choose the wires of 0.75mm above it /18# specifications, in order to avoid overload leads to power cord fever, lead to adverse consequences.
(2). Single module lamp can be cut, when the connection module short, first with oblique mouth clamp center cut two module of power line, decortication 10mm or so and the corresponding colors (red and white line cathode, the cathode of the white line) wire twisted into a stock, then the special waterproof tape insulation waterproof processing, final inspection power wiring head guide continuity and reliability, be the unarmed cannot wire from pull the wiring head that is appropriate.
(3). Module installed first module at the bottom of the gum from the paper tore affixed to or advertising light boxes mark preliminary fixed, then the 1 single ST2.5x10mm tapping screw locking reinforcement, the module both sides of glass glue fixed;
(4). The end of the module is not connected to the module, the use of waterproof adhesive tape or waterproof plugging head for water treatment, to avoid damage to the product caused by short circuit;
(5). Terminal module threads need to use waterproof tape or wiring waterproof plug for water treatment, to avoid short circuit damage to the product.
(6). Module can not be completely exposed in the outdoor use, do not live touch, live operation.
