Description:

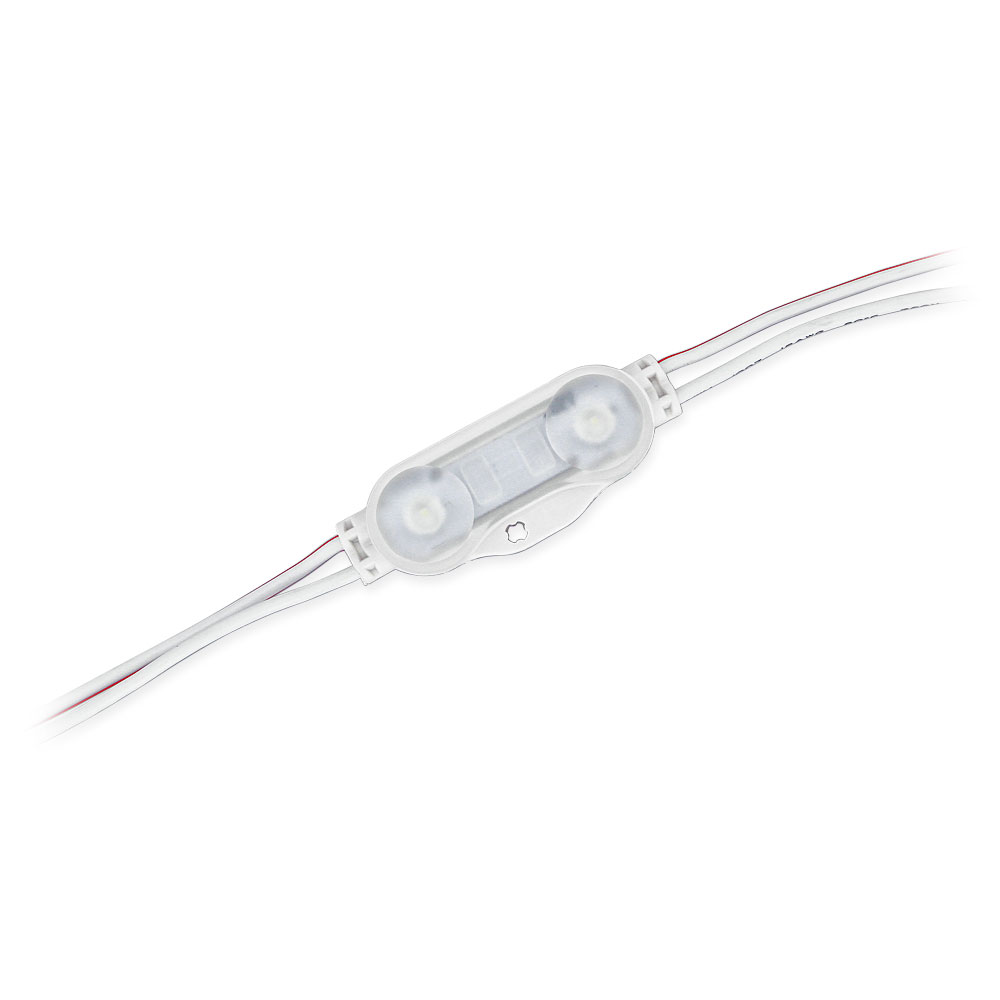

Backlighting Injection Module: high quality 0.5W SMD 2835
1. Chain of 20 pcs of LED modules
2. High efficiency LED
3. High color consistency (MacAdam 4)
4. Beam angle: 160 degree
5. Protection class of LED Module: IP67
6. Flexible chain, can be split between any module.
7. Mounting with screw or premounted double-sided adhesive tape possible
8. Normal life-time up to 50,000 h(at tc 50 degree)
Application:
1. Distance of modules(wire): 120mm
2. Ambient temperature ta: -25 ~ +50 degree
3. Max. temperature on module tc: 65 degree
4. Storage temperature ts: -40~ +85 degree
5. Risk group( EN 62471: 2008): 1
6. Certification list: CE/UL/ENEC/RoHS
Specification:
Model NO.: LEDM-MNS-M22GX02A-CN
Light Source: SMD 2835
Color：NW/CW
Luminous: 90-100lm
Power: 1W
Chips: Epistar
IP Rating: IP67
Waterproof: Structural Waterproof
Warranty: 5 Years
Certification: CE, UL, ROHS, LM-79, ENEC

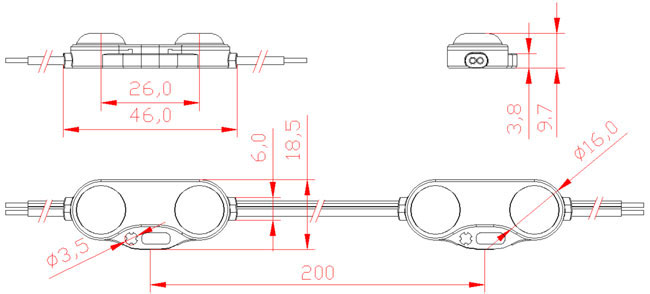

Product 2D Drawing (Unit:mm)
| Wiring type |
| Cable |
UL 1007 20AWG |
| Color |
red - white |
white |
| Function |
+ |
- |

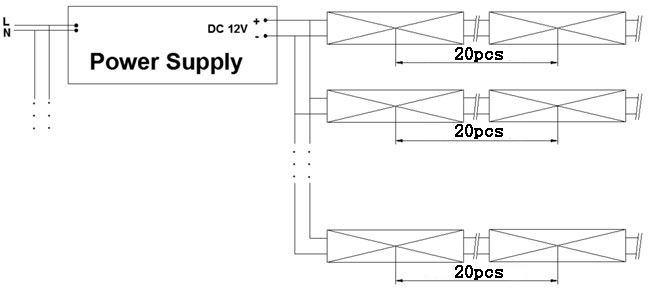

Connection Examples:

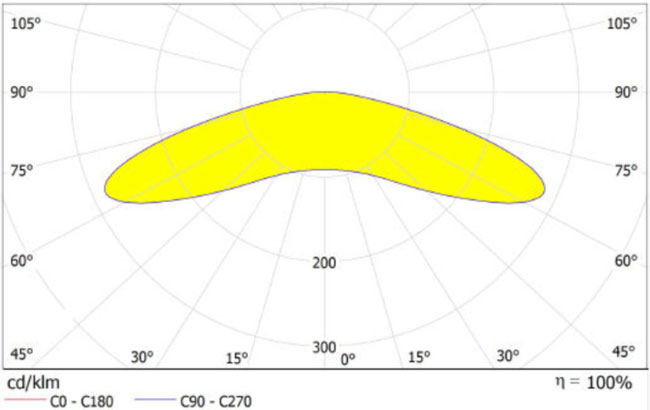

Lighting Distribution:
Noted:
• The power cable should meet the actual maximum current and power.
• All the end point of wire should be treated with waterproof;
• Pay attention to the maximum number of connections, prohibit overloading.
• All the power supply must has the corresponding certification.
• Our company reserves the right of final interpretation.
• Subject to change without notice.

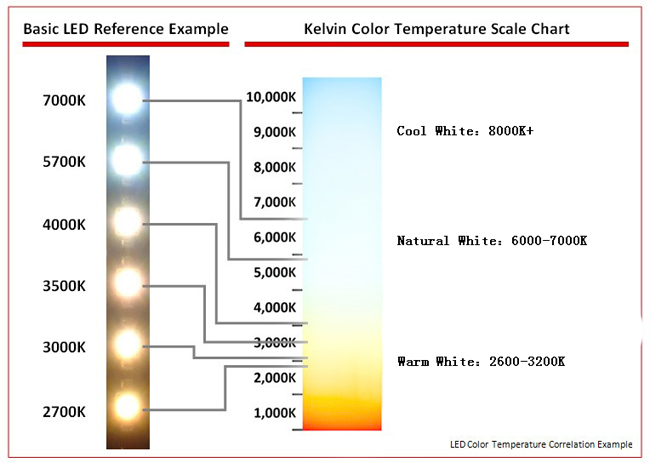

Color temperature description:
