Description：

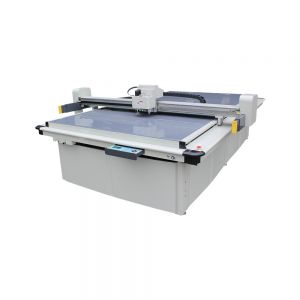

DCZ70 series Flatbed Digital Cutter is AOKE new developed carton box sample making system, the capability improves a lot comparing with the former, not only the processing speed, processing accuracy, convenient operation, but also the impressive surface.DCZ70 series sample making machine make cutting, creasing, drawing available undertaking AOKE machine’s stable, high speed, high accuracy. it could meet sample making or small production require of packaging company, corrugated box manufacturer, color box manufacturer, color printing manufacturer,, die cutting manufacturer. it could cut corrugated board , chipboard, foam board, plastic board, thin wood board, leather, cloth, honeycomb board, KT board etc. we are great reputed by customers from packaging, advertisement, printing, die cutting, electron, gasket, sign industries. The DCZ70 win great support from Shanghai Technology Small and Medium Enterprises Technical Innovation Fund.
DCZ70 series character:

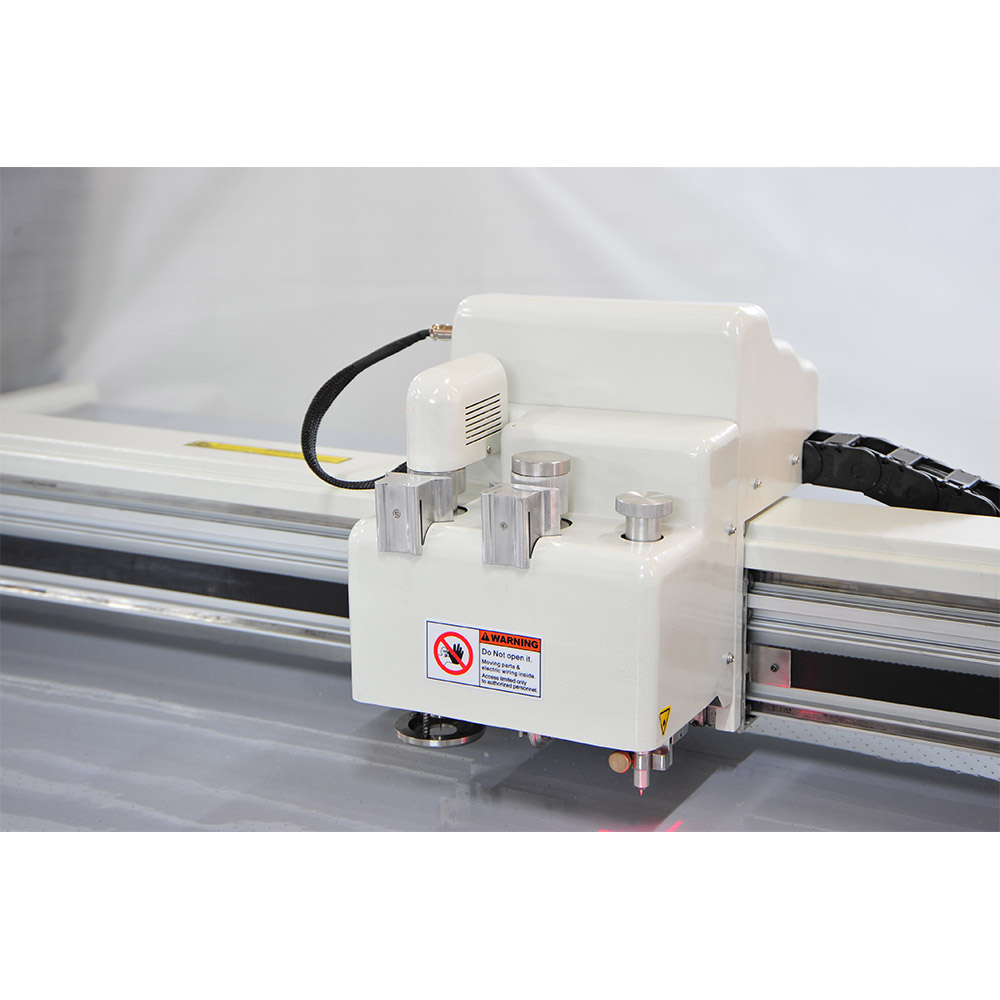

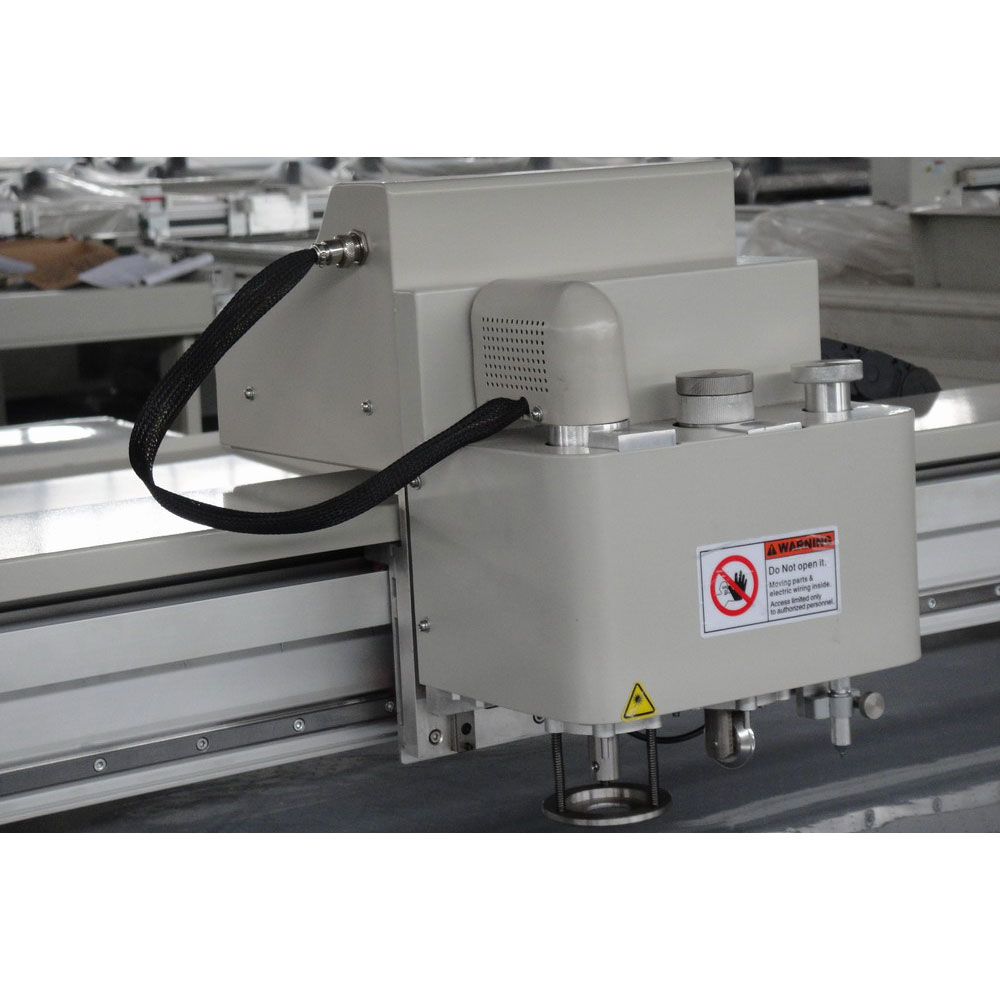

Two interchangeable tools, whole sets head design, convenient to change cutting tools.
Four spindles high speed controller, modularizing installing, convenient for maintenance.
Cutting depth could be adjusted as customers need.
Easy to set parameter, different materials could be processed just after the cutting thickness and cutting speed are set well.
Samples:
Foam and Corrugated dis:
Honeycomb Board and Foam:
PVC Corrugated and PP:
Application:

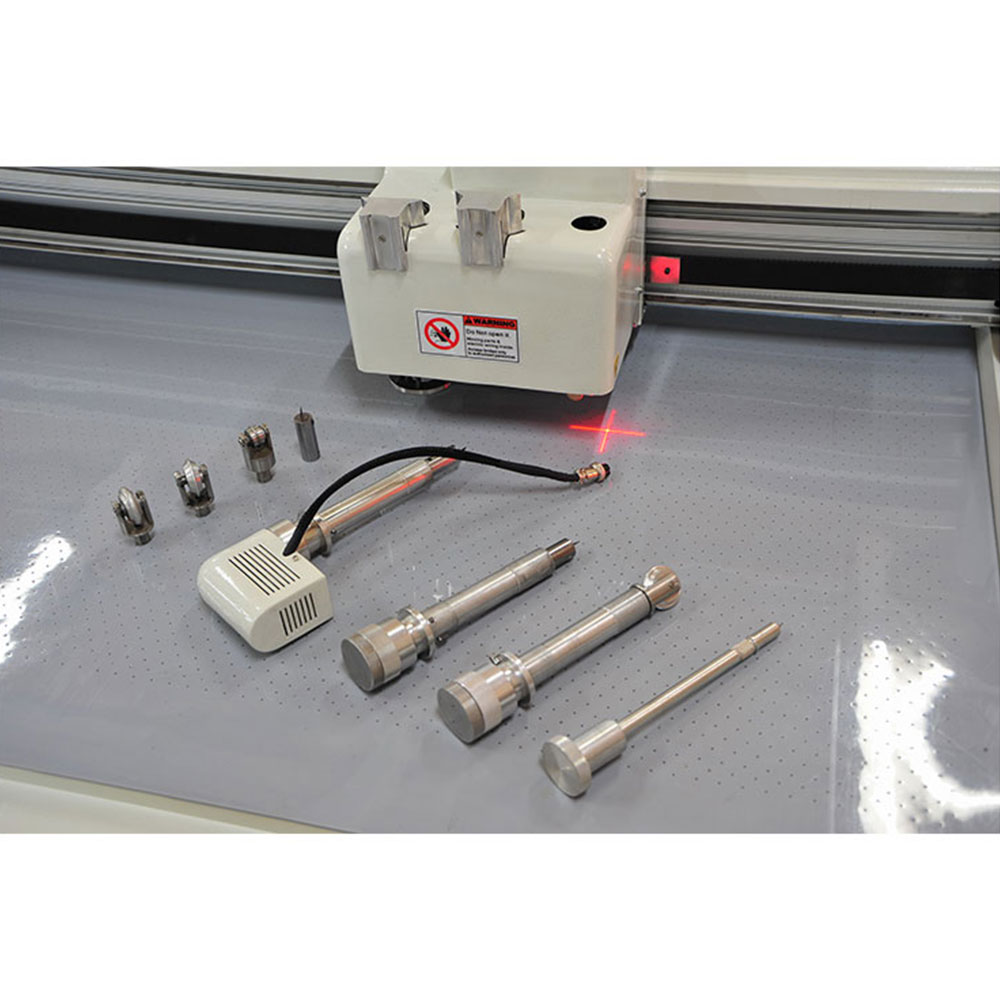

Knife tool:
| No. | Photo | Name | Application | Note |
| 1 |  |
16 degree knife |
Used to cut materials between 10mm to 15mm thick. |
|
| 2 |  |
20 degree knife |
Used to cut materials between 7mm to 10mm thick. |
|
| 3 |  |
26 degree knife |
Used to cut materials between 5mm to 7mm thick. |
|
| 4 |  |
Drag knife |
Used to cut materials within 3mm thick. |
|
| 5 |  |
Special knife |
Used to cut materials within 2mm thick |
|
| 6 |  |
Foam knife | Used to cut foam and other soft materials less than 30mm thick. | |
| 7 |  |
V cut knife | Used for making V groove on the Honeycomb board and grey board. | Option |
| 8 |  |
Grey board V cut knife | Used to making V groove on the grey board to make the gift box. | Option |
| 9 |  |
Double edge knife | Mainly for the thick and hard materials such as grey board, PP etc | Option |
| 10 |  |
30 degree knife | Mainly for the hard material such as carbon gasket, gasket, ruber, grey board, PP etc. | Option |
Creasing wheel:
| No. | Photo | Name | Application | Note |
| 1 |  |
3mm creasing wheel |
Creasing thickness: Between 3mm and 5mm corrugated board. |
|
| 2 |  |
5mm creasing wheel |
Creasing thickness: Between 5mm and 7mm corrugated board. |
|
| 3 |  |
7mm creasing wheel |
Creasing thickness: Between 7mm and 10mm corrugated board. |
|
| 4 |  |
2mm creasing wheel |
Creasing thickness: Within 2mm, such as corrugated board, paperboard, Kraft paper, gray board, offset board, composite materials etc. |
|
| 5 |  |
PVC creasing wheel |
Used for PVC, plastic box, PVC corrugated etc. |
Option |
Pen:
| No. | Photo | Name | Application | Note |
| 1 |  |
Pen |
Drawing |
| Specification Form | |
| Model | DCZ701310 |
|
Effective cutting area |
1300 x 1000mm |
|
Configuratio |
Oscillating knife, pen, creasing tool, drag knife |
|
Max aped |
1350mm/s |
|
Smallest cutting diameter |
6mm |
|
Maximum cutting thickness |
30mm |
|
Control line and driver |
Servo |
| Precision | ≤0.1mm |
|
Vacuum |
5.5kw |
|
Data form |
HPGL, DXF, PDF |
|
Voltage |
220V ± 10% 50Hz |
|
Data port |
Parallel port, serial port, USB port |
|
Data transmission speed |
10MB/S |
|
Input cushion area |
32MB |
| Occupy dimension (L x W x H) | 2200 x 1860 x 1180mm |
|
Note |
Other size can be customized. |
Average Rating: 0
| Package | Fumigation free package |
| Packing size | 81.49" x 77.95" x 30.7" (2.07 x 1.98 x 0.78m) (Machine body), 520kg 79.5" x 32.6" x 33" (2.02 x 0.83 x 0.84m) (Vacuum pump and control box), 255kg |
| Gross weight | 775kg |
Option:
Video registration system
Kasemake vision is a digital video registration system for use on DCZ series digital cutter. Its use converts your cutting table into a die-less, cut on demand, production system for pre-printed board. As a print registration system ensures accurate alignment of individual print passes on media, the vision system accurately registers the position of pre-printed board on the cutting table ensuring perfect alignment between printed media and the digital key line used to cut the display from the sheet of board.
Accurate manual alignment of a job taks time. Digital registration is fast and accurte. Place the board in approximately the correct position on the table and the vision system will adjust for placement and rotation in seconds, removing any errors and ensuring a high quality finish.

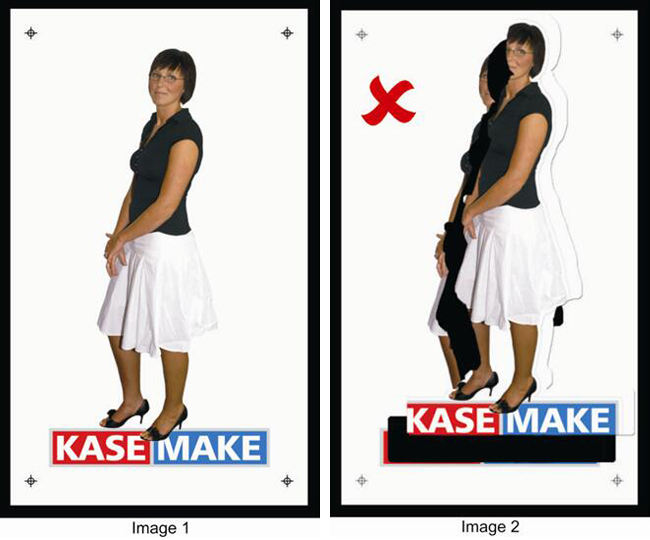

Image1 ilustrates the printed board complete with registration marks.

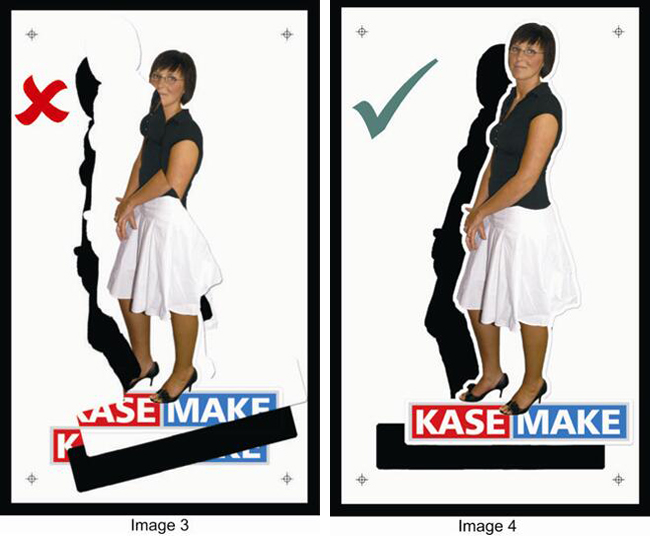

Image 2 and 3 ilustrate sheets that have been incorrectly placed on the table and then cut, these are "out of register". Repeating these errors several times in a short turn can prove costly and wasteful.
Image 4 shows how the job will look after positioning using KASEMAKE vision. The job has been place on the table and accurately registered. The display is exactly are required.

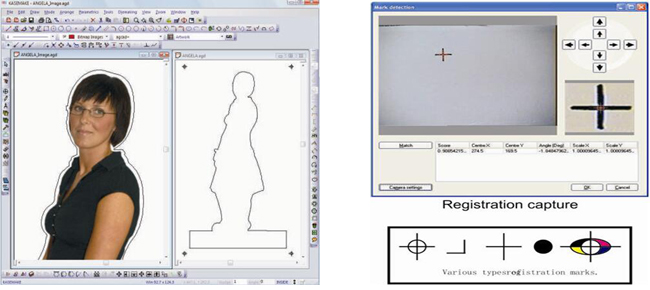

Using the system could not be easier. Open the required drawing place the printed sheet onto the table in line with visual laser mark, and let Kasemake vision do the rest.
The vision system consists of a digital camera mounted on the cutting head of a DCZ digital cutter. This is able to see registration marks on a printed sheet or board. The register marks as "seen" and processes the register marks as "seen" and processes the cutter path to align with the marks. This has the affect of moving and rotating the cutter geometry to suit the position of the board on the table.
Cutting knife:
|
V cutting knife for honeycomb board |
V cutting knife for grey paper |
Foam cutting knife |
 |
 |
 |
