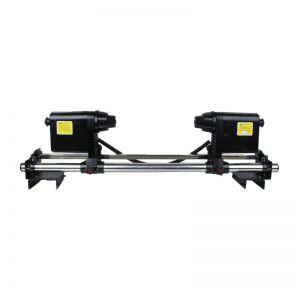

The Media Take Up GSD64 is a convenient and easy-to-use media winding system for selected Roland, Mimaki, Mutoh and other printers that keeps your prints dust free when they leave the printer.
Description:
The take up system allows you to leave production unattended, with the completed job securely wound, and it is particularly useful for long print runs and large graphics. In print then laminate workflows, the take-up system enables an easy and precise workflow from completion of printing to loading and feeding through roll-to-roll lamination units.
The take up unit also reduces media waste and maximizes quality of output by automatically tensioning the vinyl, keeping it tightly wound on the reel to help avoid nicks, creases and scratches in the media. All roll-to-roll materials are automatically wound onto the unit to help you maintain a clean and safe workspace while providing an easy storage.
Features:
Easy installation
Universal system that fits different printer models
Reinforced metallic structure ensures excellent stability
Holds up to 65kg of printed media
Suitable for outwards and inwards take up
The Media Take Up has 2 synchronized tension sensitive industrial motors
To be used with:
Roland RA-640 / RE-640 / RS-640 / SC-500 /SJ-645ex /VS-640 / XR-640
Mutoh Valuejet 1604 / Valuejet 1614 / Valuejet 1608 / Valuejet 1618 / Valuejet 1624 / Valuejet 1638 / Valuejet 1638W
Mimaki JV2 / JV22 / TX2-1600 / JV3 / JV4 / JV400-160LX /JV400-160SUV / TS3-1600
Epson SureColor SC-S30600 / SureColor SC-S70600 (8C) / SureColor SC- S50600 (4C) / SureColor SC-S70600 (10C) / SureColor SC- S50600 (5C)
Seiko Colorpainter 64S / Colorpainter V-64S / Colorpainter W-64S
HP Designjet 9000
If your printer is other 64 inch wide format printers, please contact us before placing the order.
Note:
1. The Media Take Up GSD64 is ordering production, need 3 to 4 days of stock up time.
Installation instructions:

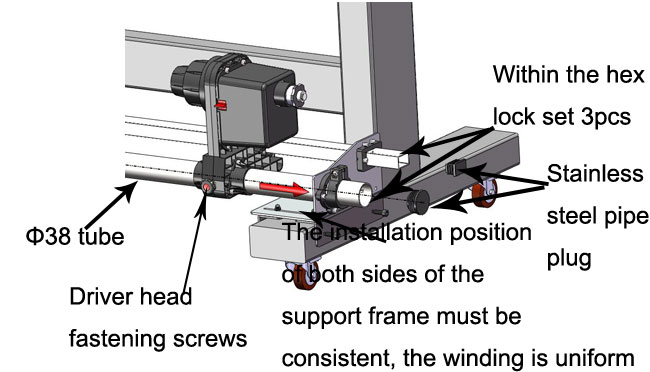

The square, round tube through the power head (pictured above), according to the direction of the arrow from the locking bracket fastening ring to wear, with 2.5# respectively M5 inner six angle wrench set screw locking, square tube.
Package:
Installation Video of Automatic Media Take up Reel:
| Specification | |
| Model | SZQ-SH-GSD64 |
| Working Width | 1600mm |
| Voltage | 220V |
| Maximum Diameter Of Hosting Media | Ø240mm |
| Bearing Weight | 65kg |
| Motor Warranty | One Years |
| Packing Size | 2000 x 120 x 80mm 380 x 380 x 280mm |
| Gross Weight | 6kg + 11kg |
Average Rating: 0

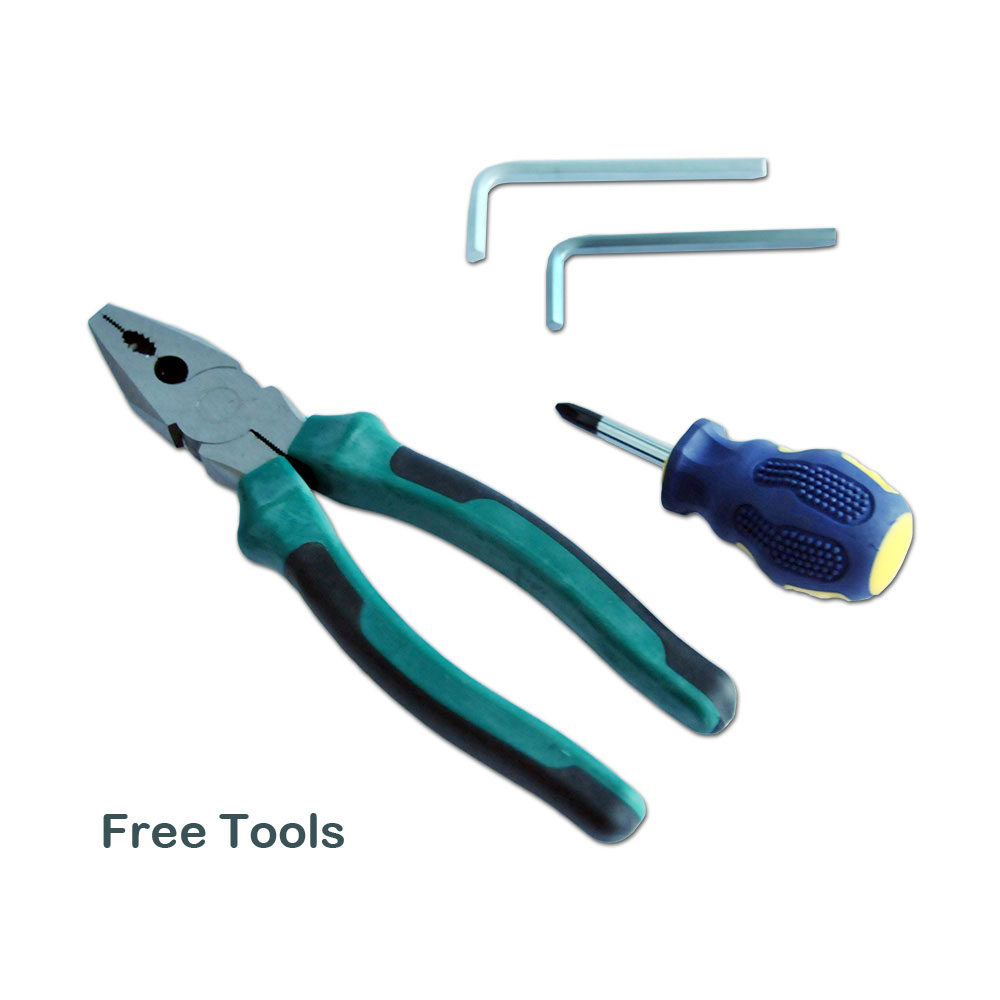

| Packing List | 2 x Motor, 2 x Tube, 1 x Tool Kit |
| Package | 2 cartons |
| Packing Size | 380x380x280mm(15" x 15" x 11"), 2300x130x70mm(90.6" x 5.1" x 2.8") |
| Gross Weight | 12kg(26.5lb), 7.2kg(16lb) |
