Product Highlights
– 51" x 35" (1300mm x 900mm) working area
– Up to 23.6" IPS (600mm/s) high working speed
– Pass-through front and rear doors to accommodate long work pieces
Three unique protection functions, i.e. anti-interference function, water-protective function and power cut-off function ensure longer working life, safety and effectiveness.
– Laminated Safety Glass, glass viewing windows creating a safe enclosure for laser processing.
– Adopt the super fine cutting technology, which has features of extensive material processing, smooth cutting edge and burr-free, avoid polishing, processing high speed, high precision.
– Original Singapore imported lens with molybdenum base, making the equipment produce smaller facula and stronger cutting force, greatly improving working efficiency and reducing cost.
– Exhausting, absorbing and assistant blowing systems solve the problem that troubles the laser equipment manufacturing industry for years, extending the life of the laser tube.
– The laser cutter is equipped with aluminum strip shape platform, which can bear heavier materials, such as organic glass, wood and much more.
– This machine uses USB port to transmit data, it is equipped with large internal memory capacity, improving the working speed with greater efficiency.
– LCM-BY-Z1309 laser cutting machine, adopts high quality CO2 glass laser tube made in China, with a fine cutting effect and price advantage.
– Equipped with high quality water chiller cw3000, which can prolong the lifespan of the laser tube and ensures a better engraving effect.
.jpg) |
 |
.jpg) |
| Electric Lifting Worktable(Optional) | Control Panel | Honey Comb Table(Optional) |
.jpg) |
.jpg) |
.jpg) |

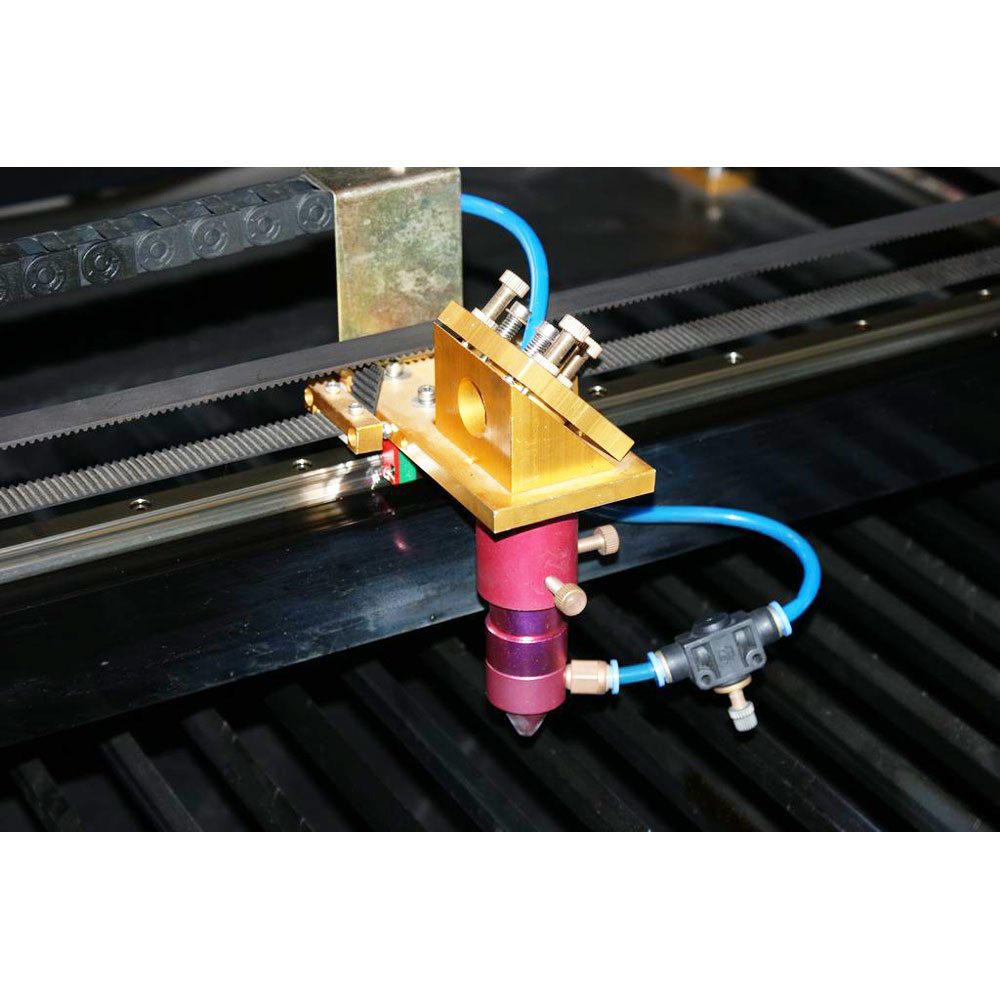

| Laser Head | Linear Guide | Rotary Fixture(Optional) |
Optional Accessories: Please choose the accessories when you make an order!
Otherwise we recommend you to order one set of consumable parts together with the laser engraver, which will reduce much shipping cost and time when you need them.
1 pc laser tube
1 set mirrors and lens (Three reflecting mirrors and one focus lens)
| Choose Type | Details | Item Code |
| Add Motorized Up-Down Platform | Motorized Up and Down Platform | CS-LM-MUD03 |
| Upgrade Laser Tube | EFR F2 Upgrade to EFR F4 Laser Tube | CS-LM-LT-F2TF4 |
| EFR F4 Upgrade to EFR F6 Laser Tube | CS-LM-LT-F4TF6 | |
| Industrial Air Purifier | 600W Industrial Air Purifier Used For Laser Processing Wood Dust & Gas Exhaust | CS-DMYH-AP700 |
| Upgrade Water Cooling System | S&A CW-5000AG industrial water chiller (AC220V 50Hz) for a Single 80W or 100W CO2 Glass Laser Tube Cooling, 0.4HP | CW-5000AG |
| S&A CW-5200AG Industrial Water Chiller (AC 1P 220V, 50Hz) for Single 150W CO2 Glass Laser Tube Cooling | CW-5200AG | |
| Add Spare Laser Tube | EFR F2 80W CO2 Sealed Laser Tube 1250mmL for Laser Engraver | CS-LT-F2-80W |
| EFR F4 100W CO2 Sealed Laser Tube 1450mmL for Laser Engraver | CS-LT-F4-100W | |
| EFR F6 130W CO2 Sealed Laser Tube 1650mmL for Laser Engraver | CS-LT-F6-130W | |
| Add Spare Focus Lens | USA CVD ZnSe Focus Lens Dia. 20mm FL1.5 - 5" for CO2 Laser Engraving and Cutting Machine | CS-FL-ZM20 |
| Add Spare Reflection Mirrors | 3 pcs Mo 10.6μm Reflection Mirrors for CO2 Laser Engraving and Cutting, Dia. 25mm THK 3mm | CS-RM-25-3-E |
| Silicon Reflection Mirrors for Engraving and Cutting with Gold-plating, Dia.25mm x 3mm | CS-BL-25-3 |
Instructions of Laser Engraving Cutting Software
There are three kinds of RD laser cutting software. One is the direct output software based on CorelDraw (hereinafter referred to as CorelDraw_Laser); the other is based on the direct output software based on AutoCAD (hereinafter referred to as AutoCAD_Laser). In addition, there is another kind of independent software (hereinafter referred to as LaserWork), which is more simple to use in the first stage of using laser cutting machines.
Best quality control system in low power laser industry.
 |
 |
| Parts quality guaranteed: The main board and power supply of laser cutting machine were put into an oven at temperature of 50 degree for an aging test, minimally 4 hours. |
Laser head: Enclosed, with air blowing device, which is safer than unclosed head. |
 |
 |
| Laser Test Each laser tube and its power source shall be tested for 8 hours on/off power test: There are strict inspection criterions for its light beam quality and laser power. |
Guide rail: High precision equilibrium linear guide rail imported from Korea. Each guide rail shall be tested before installation. |
 |
 |
| 100% Check of Materials We perform 100% check to all the parts of laser cutting machine in order to avoid any disqualified parts coming into the next step of work. |
Inspection Before Delivery Any laser cutting machine before departing the factory, we will perform cutting test with the cutting precision at 0.1mm to test its verticality and dimensional deviation. |
 |
 |
| Test of Main Board & Power Supply Put the main board and power supply of laser cutting machine into an oven at temperature of 50 degree for an aging test, minimally 4 hours. |
Test of Transmission Parts Check the synchronizing wheel and bearing of the laser engraver whether are concentric and easy in rotation as well as its deviation whether is less or equal to 0.02mm. |
 |
 |
| Processing Crotrol During the production of laser engraving machines, our quality inspector will patrol and check its installation quality. It is mainly to check the parts of mechanics and electrics, cables whether satisfy the requirements of installation blueprint. If any error or problem found, the correction treatment will be executed immediately. |
Test of Guideway and Rectangular Tube Mainly to test the flatness, linearity and torsion resistance of t the guideway and rectangular tube. Put the rectangular tube and the guideway onto a marble platform, then use dial gage calibrator to check: the tolerance bigger than 0.05mm/m is disqualified. |
 |
 |
| Stretching Force Tester for the Belt of Laser Cutting Machine Ensure the machine platform cutting in consistency. |
Collimator Test The test method for the linearity, flatness and verticality of the laser cutting machine’s guideway is to use Auto Pricise Collimator 1401 Double-way. |
 |
 |
| Handy Power Indicator of Laser Cutting Machine Any point of the laser cutting machine’s power test, ensure the laser cutting machine to give best cutting effect. |
Electromagnetic Oscillograph of Laser Cutting Machine To test the electromagnetic interference and ensure the running stability of laser cutting machine. |
Please download the PDF file of User Manual of LCM-BY-Z Series Laser machine to learn more!
I.Machine Installation
Include: Laser tube assembly; Water chiller installation; Air pump connection; Exhaust fan installation; Grounding wire connection.
II. Software and USB driver Installation
III. Software Operation
Edit the images in the engraving software or input the color pictures into the engraving software, edit it, and then set the processing parameters, output images to our laser cutting machine, finish the work.
IV. Finished works!
Quality report：
| Support Image Format | BMP,PLT, AI, DXF |
| Engraving Precision | <0.01mm |
| Max. Engraving Speed | 15.7" (400mm) / s |
| Laser Power | EFR F2 CO2 glass laser tube 90W-100W (Normal lifespan: about 10000 working hours) |
| Effective Engraving Area | 51.2" x 35.4" (1300 x 900mm) |
| Working Size | 900mm x 1300mm |
| Specification | |||
| Model | LCM-BY-Z1390-90W | LCM-BY-Z1390-100W | LCM-BY-Z1390-150W |
| Max. Working Area | 51" x 35" (1300mm x 900mm) | ||
| Max. Cutting Speed | 15.7" (400mm) / s (Adjustable) | ||
| Max. Engraving Speed | 23.6" (600mm) / s | ||
| Laser Power | EFR F2 CO2 glass laser tube 90W-100W | EFR F4 CO2 glass laser tube 100W-130W | EFR F6 CO2 glass laser tube 130W-160W |
| Normal lifespan | ≈ 10000 hrs. | ||
| Max. Cutting Thickness (Acrylic) | ≤1.2" (30mm) | ||
| Resolution Ratio | 0.0064mm | ||
| Positioning Precision | 0.0009 (0.025mm) | ||
| Min. Shaping Character | Chinese Character: 0.1” x 0.1" (2mm x 2mm), letter: 1mm x 1mm | ||
| Location Precision | <0.01mm | ||
| Power Supply | AC110V±10%, 60HZ; AC220V±10%, 50HZ | ||
| Gross Power | <1250W | ||
| Cooling Method | Water cooling and protection system | ||
| Supported Image Formats | BMP, PLT, compatible with many file formats for Windows OS, such as AI, CorelDraw, Photoshop, AutoCAD, etc. | ||
| Cutting Software | Laser cut 5.3 engraving software | ||
| Interface | U disk, enternet | ||
Average Rating: 0
| Model | LCM-BY-Z1390-90W | LCM-BY-Z1390-100W | LCM-BY-Z1390-150W |

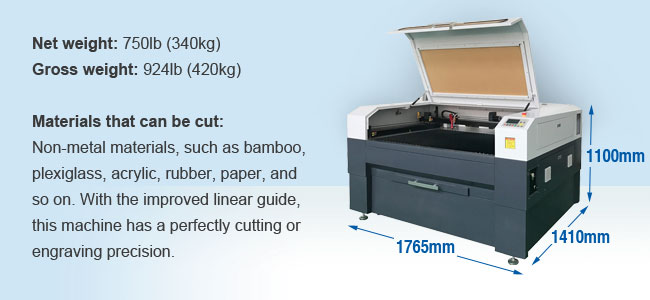

| Machine Dimension | 70" x 56" x 43" (1765mm x 1410mm x 1100mm) | 70" x 63" x 43" (1765mm x 1610mm x 1100mm) | 70" x 71" x 43" (1765mm x 1810mm x 1100mm) |
| Machine Weight | 750lb (340kg) | ||
| Package | Wooden box | ||
| Packing Size | 77"x60"x46" (1960mm x 1520mm x 1180mm) | 83"x74"x47" (2120mm x 1880mm x 1200mm) | 79" x 62" x 51" (2030mm x 1570mm x 1300mm) |
| Gross Weight | 924lb (420kg) | 924lb (420kg) | 1056lb (480kg) |
| pictures | Items | Unit | Quantity |
 |
Laser engraving machine | set | 1 |
 |
Electromagnetic Air Pump | set | 1 |
 |
Corrugate tube | unit | 2 |
 |
CW3000 water chiller | set | 1 |
 |
Exhaust System Motors | unit | 1 |
 |
Focus ruler | unit | 1 |
 |
Kit | unit | 1 |
 |
Laser tube | pc | 1 |
 |
Mirror and lens | set | Each has one |
 |
Power line | piece | 1 |
 |
Trachea / Water | set | 1 |
