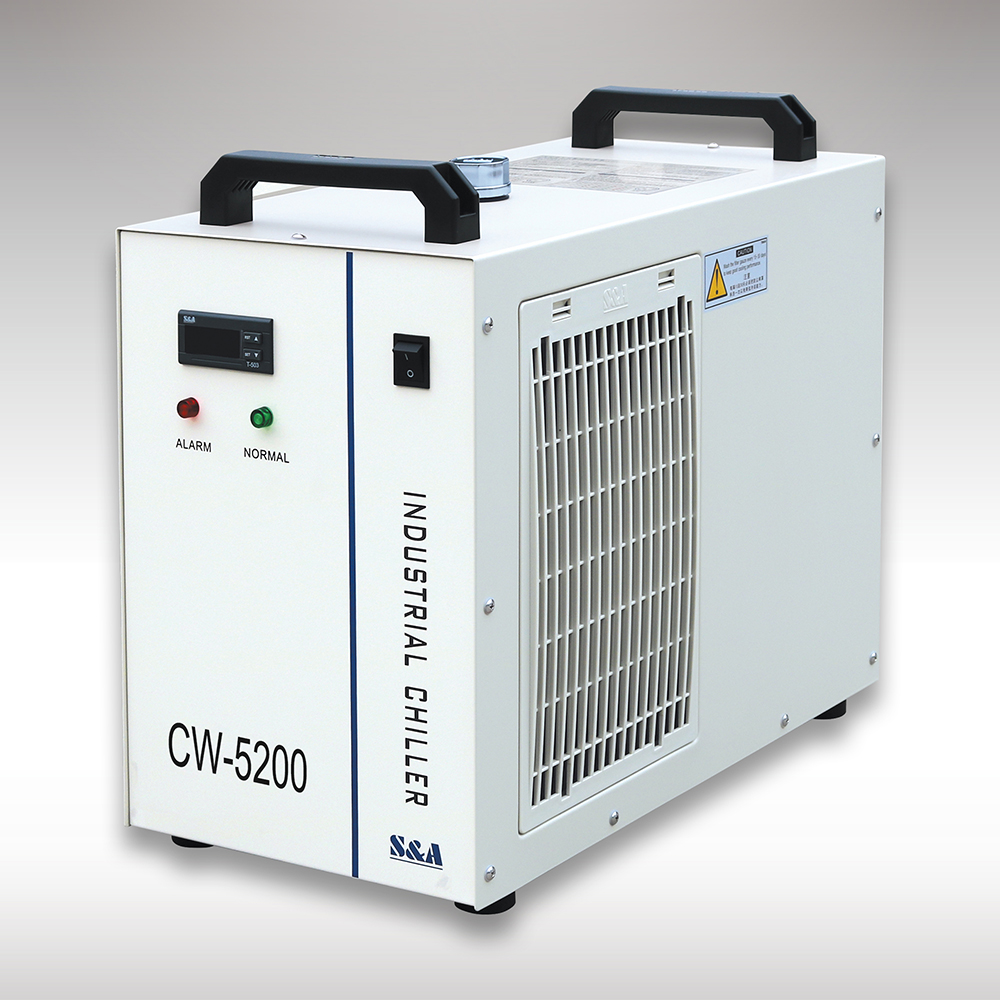

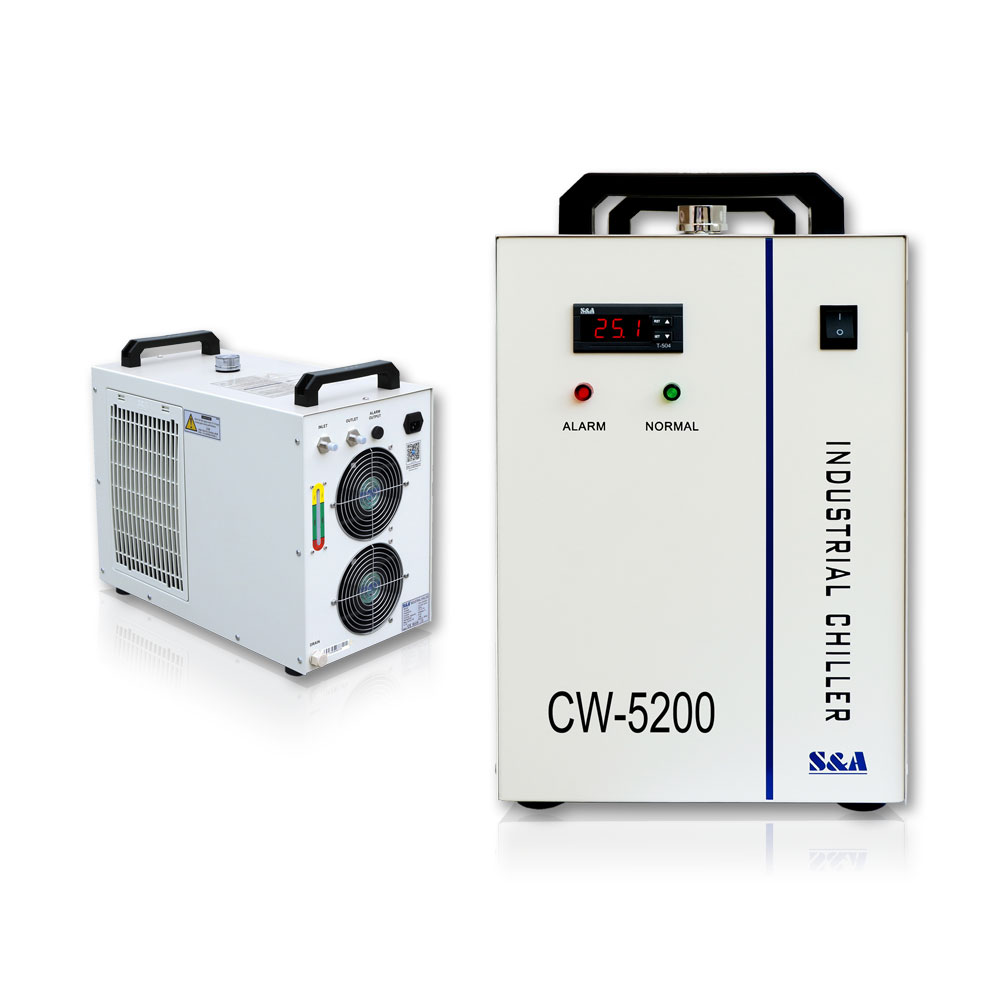

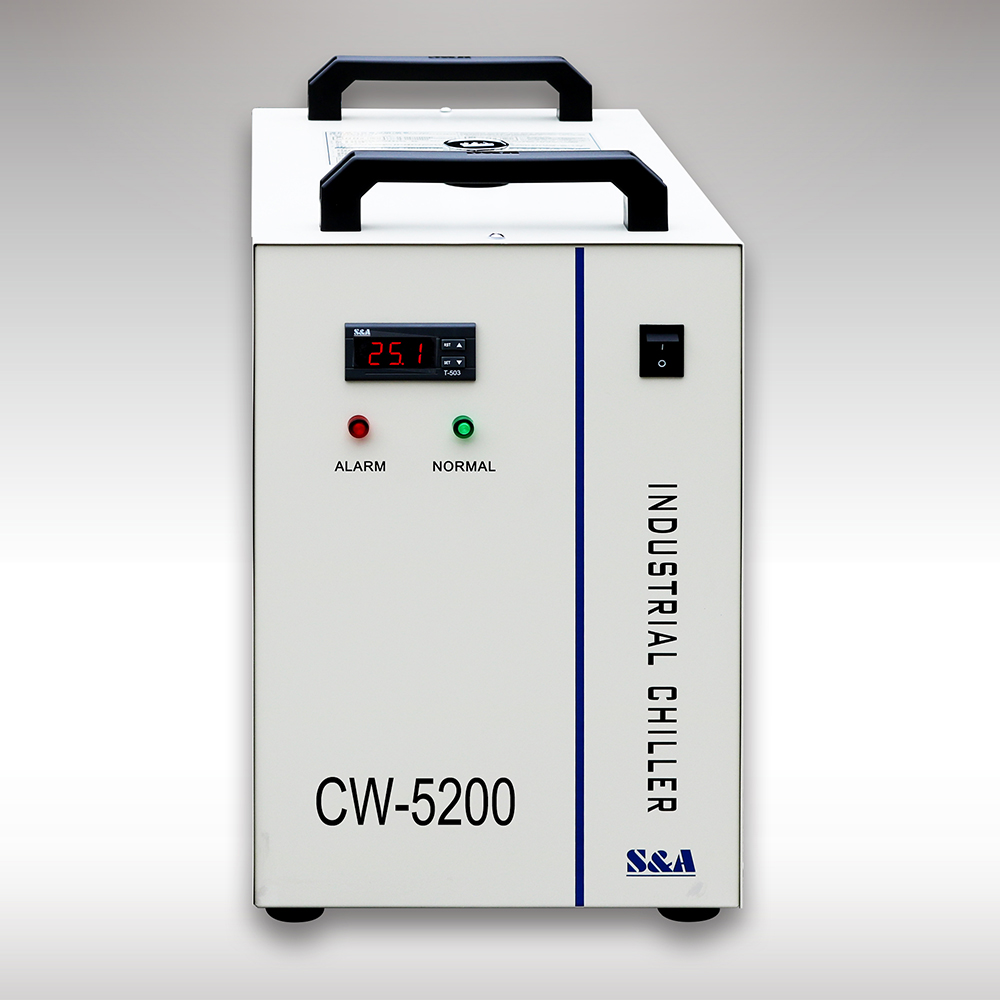

S&A CW-5200BG Industrial Water Chiller (AC 1P 220V 60Hz) for a Single 130W or 150W CO2 Glass Laser Tube Cooling, 0.68HP

S&A CW-5200BG industrial water chiller (AC 1P 220V 60Hz) for a Single 130W or 150W CO2 Glass Laser Tube Cooling, 0.68HP

Description
Our CW-5200 is refrigeration type industrial Water Chiller of 1400W cooling capacity. It’s mainly used to have the heat generated during the laser device working that gone through the refrigerating cycle in compressor refrigeration system and eventually transferred to the air. The water temperature is able to be adjusted. There are 2 specifications as 1 water outlet / inlet and dual water outlet / inlet, applicable to cool single laser glass tube.
Have design patent Certificate, CE and RoHS Certificate.
This Water Chiller has been sold largely to Europe, South America, Asia and other markets.
Economic cooling equipment, easy to install and operate, compact and easily movable.

Our industrial water chillers are popular for its 2 temperature control modes as constant temperature and intelligent temperature control. Under intelligent mode, the water temperature is adjusted according to ambient temperature. With that 1 key solution, customers no longer need to worry about the water temperature adjustment of seasonal changes.

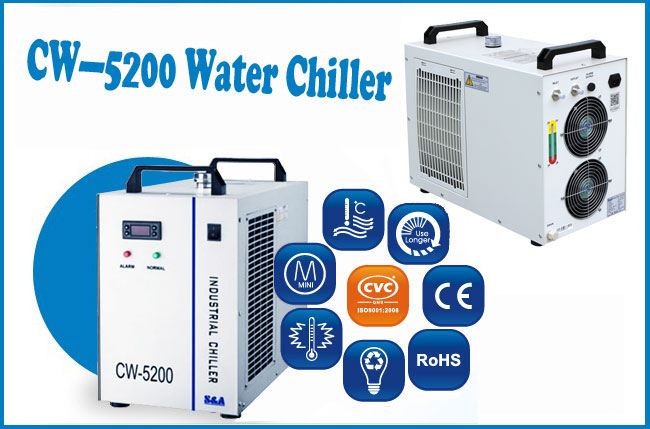

Features

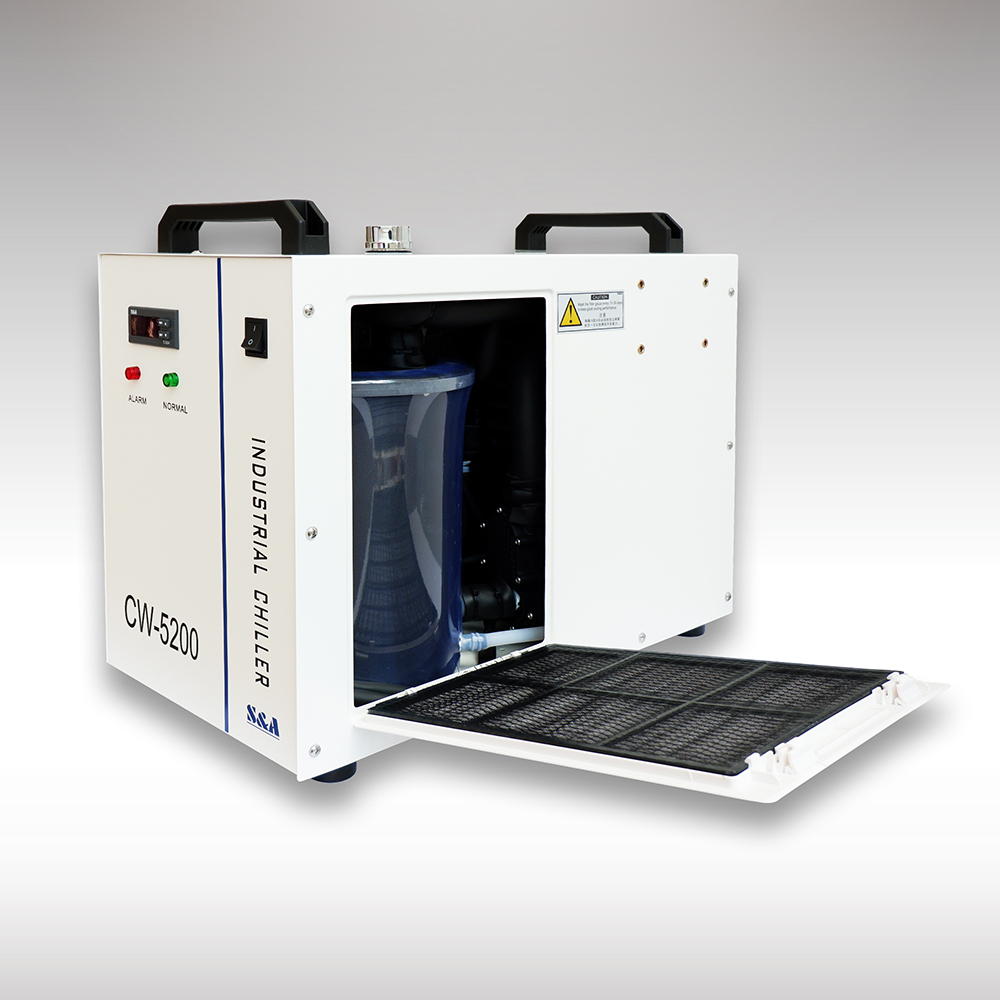

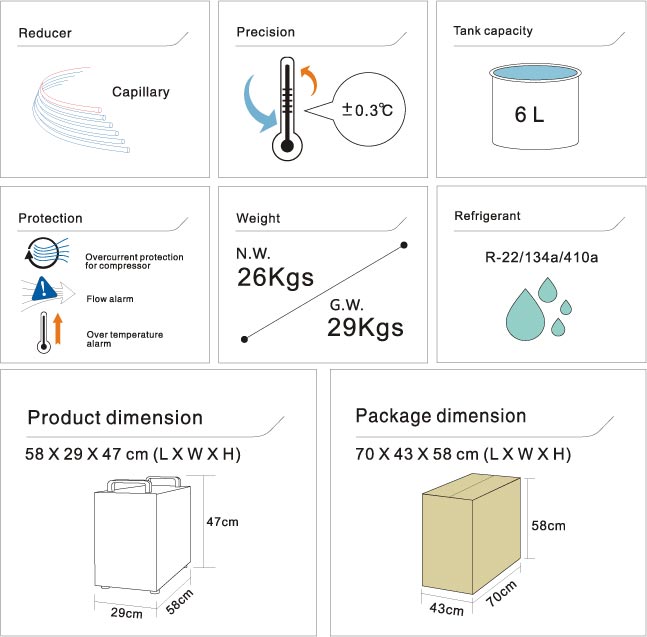

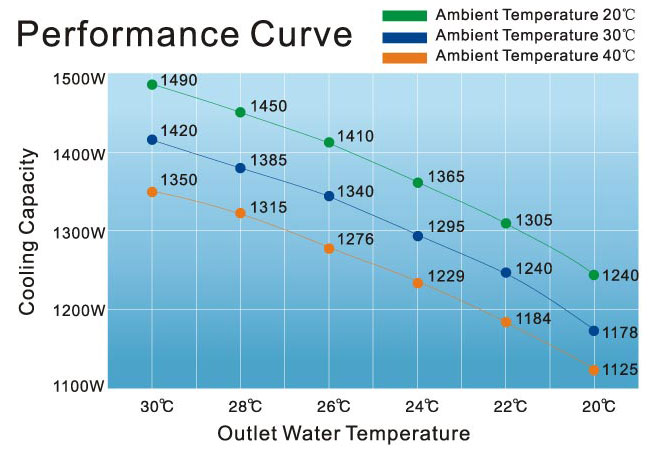

• 1400W cooling capacity; optional environmental refrigerant;
• Compact size, long working life and simple operation;
• ±0.3°C precisely temperature control;
• The intelligent temperature controller has 2 control modes, applicable to different applied occasions; with various setting and display functions;
• Multiple alarm functions: compressor time-delay protection, compressor overcurrent protection, water flow alarm and over high / low temperature alarm;
• Multiple power specifications; CE approval; RoHS approval;
• Optional heater and water filter.

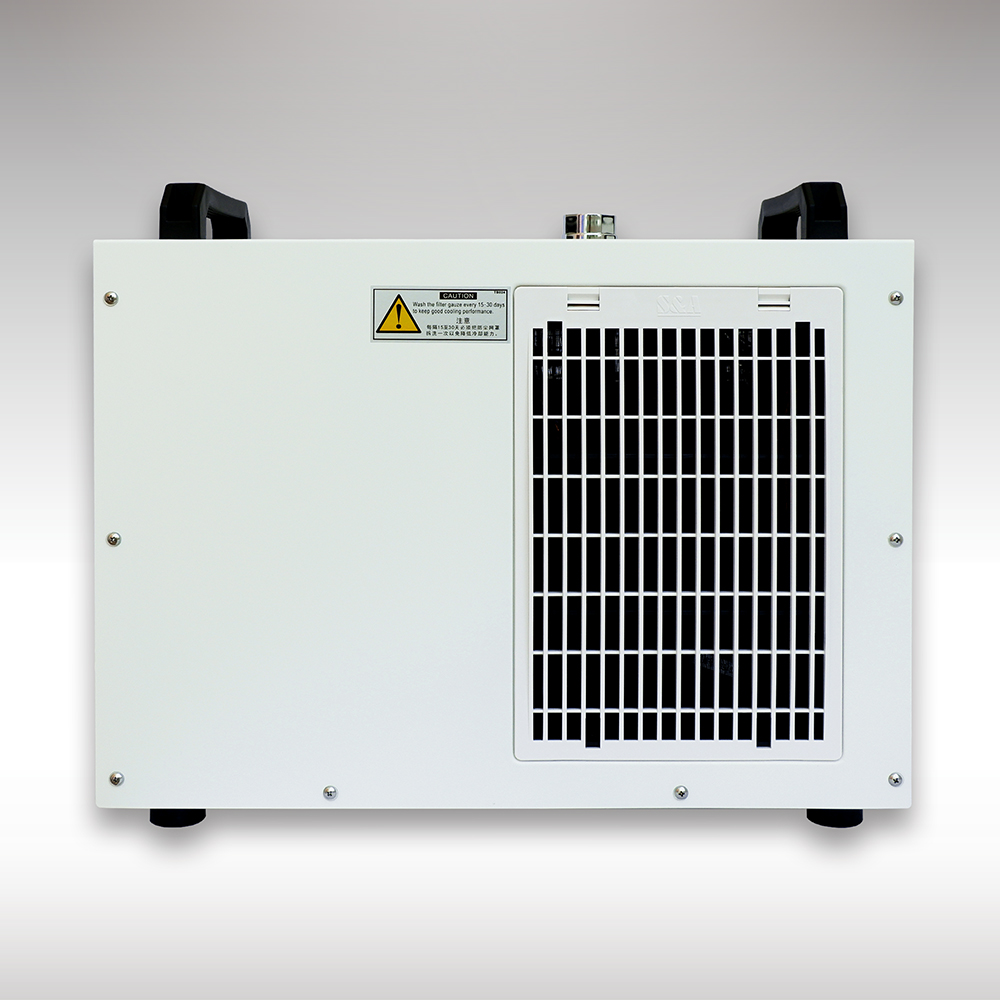

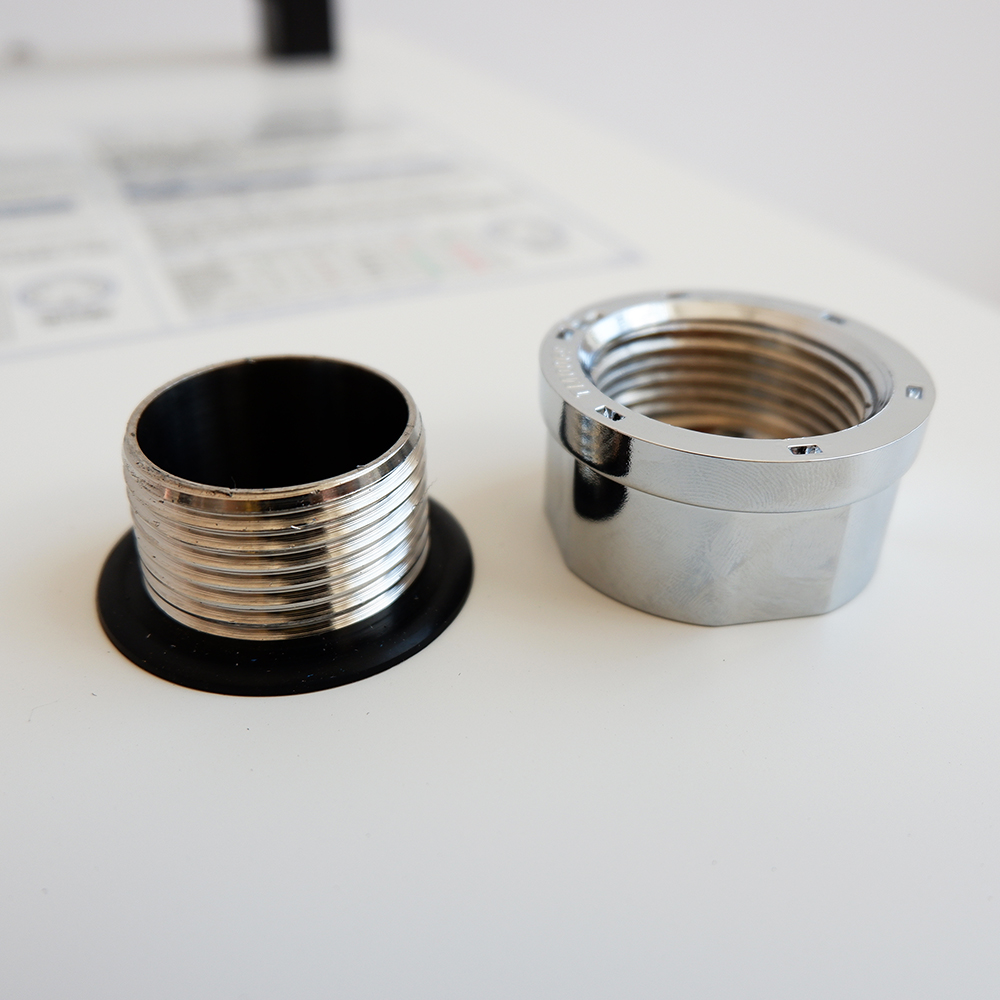

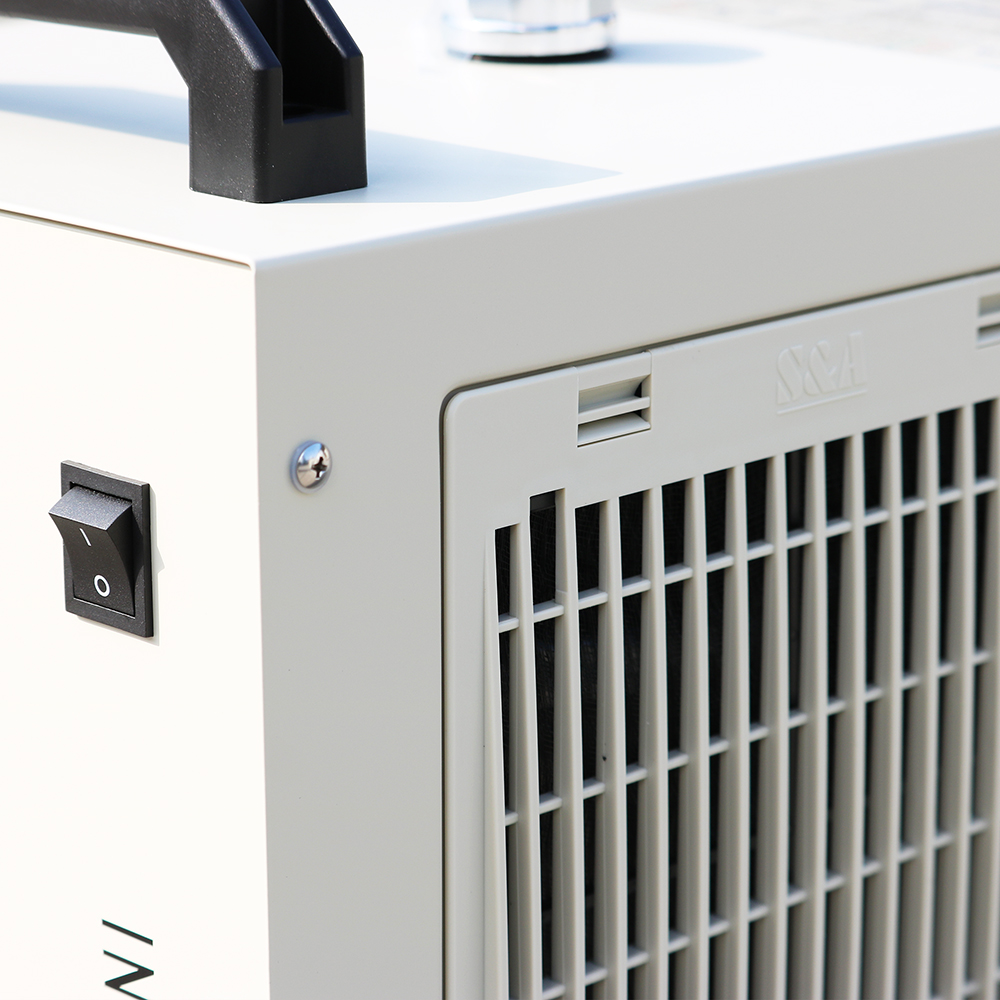

Details:

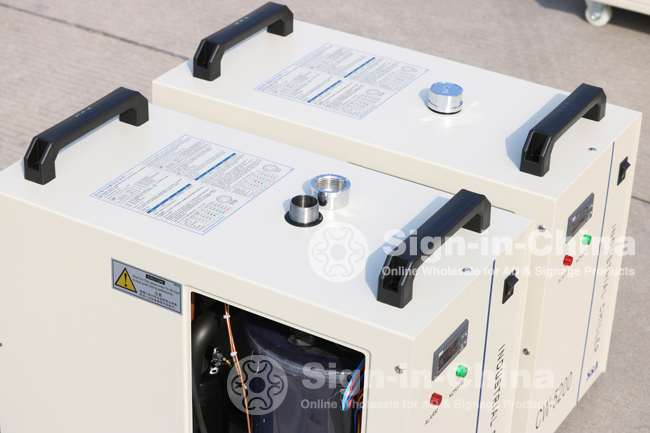

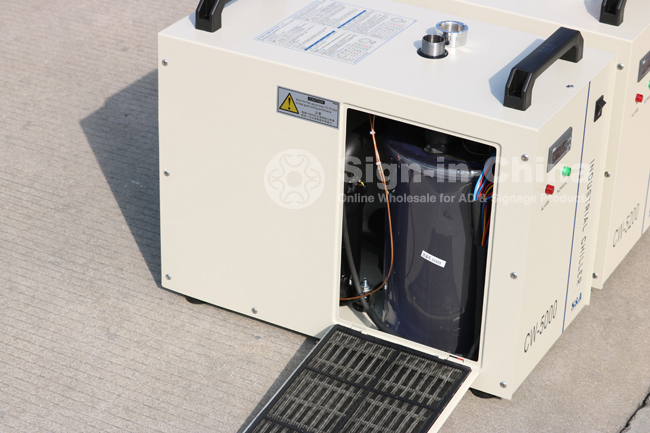

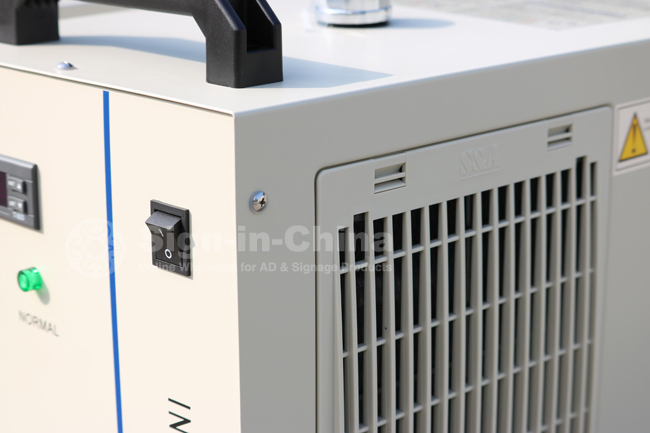

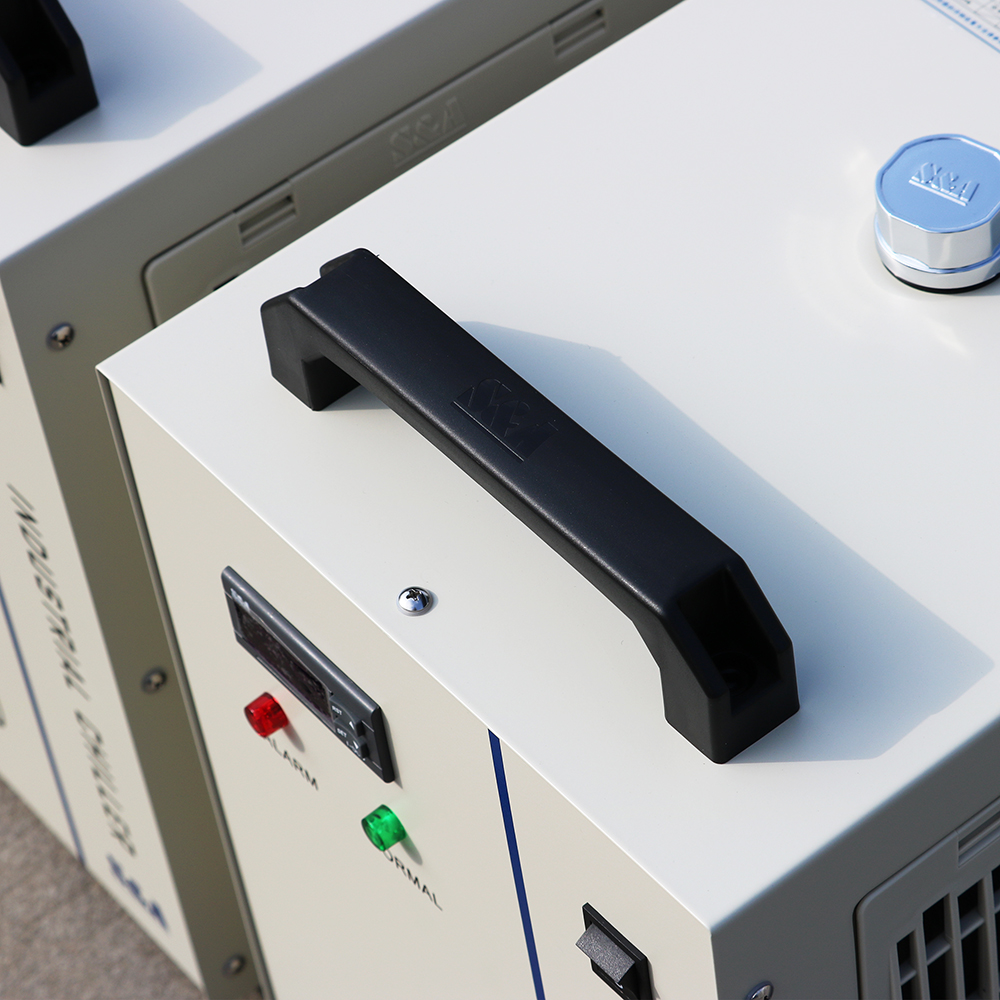

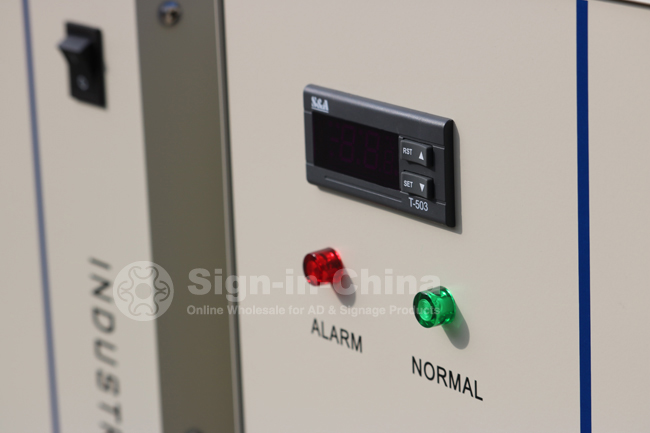

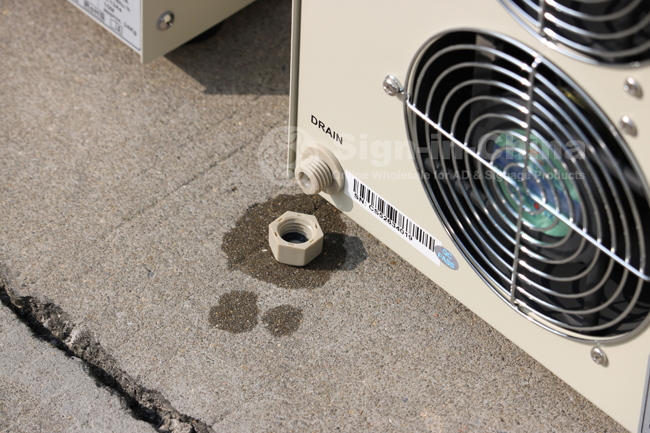

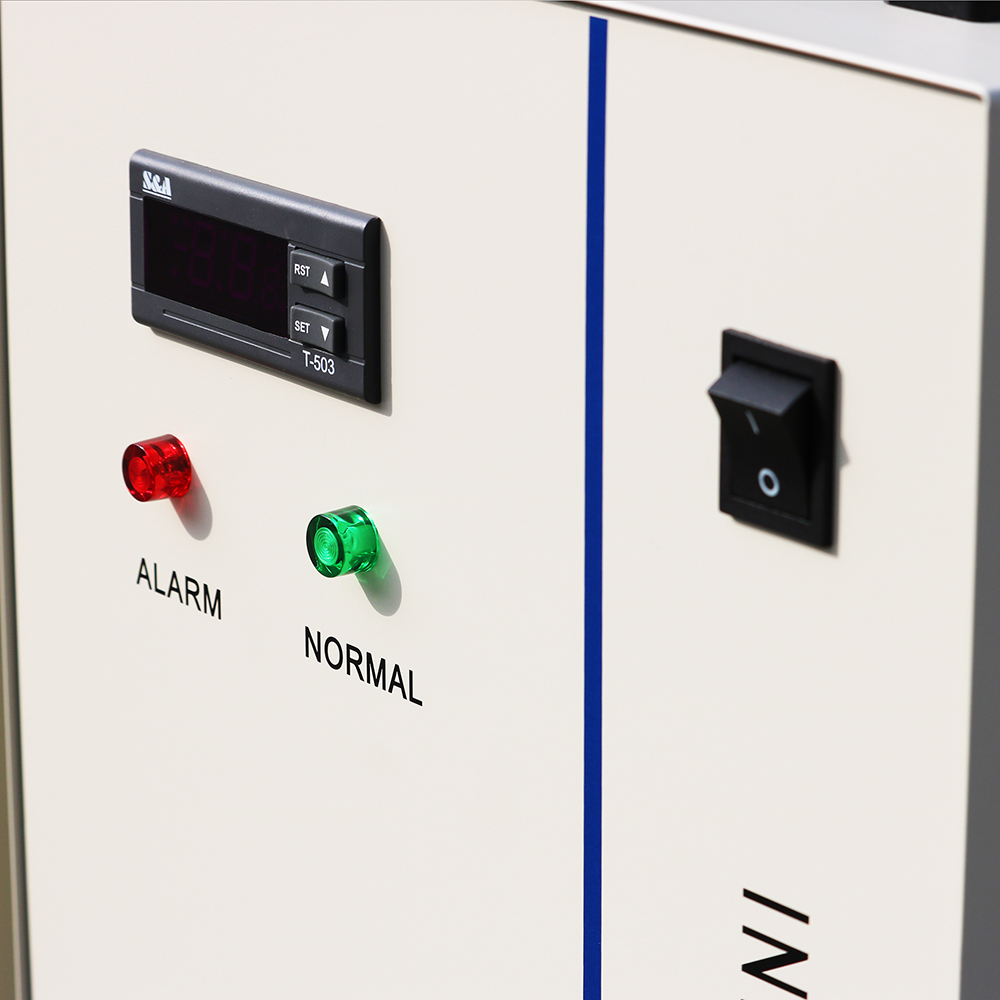

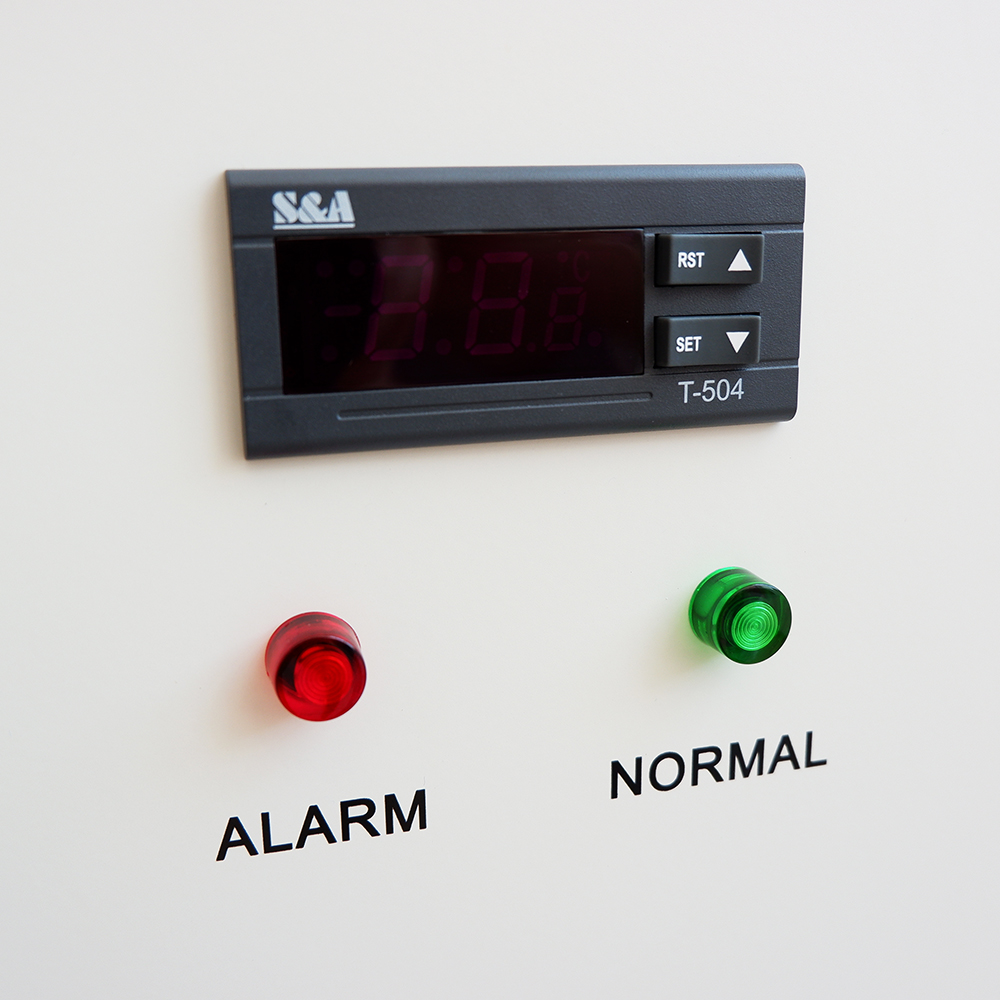

Temperature controller panel:

Under normal circumstance, the new intelligent temperature controller does not need to adjust the controlling parameters.
It will self-adjust controlling parameters according to room temperature, guaranteeing to meet cooling requirements for machines.
Alarm Function’s Description:

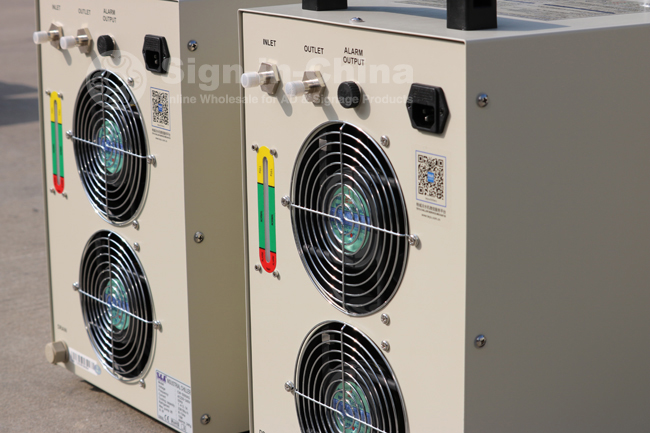

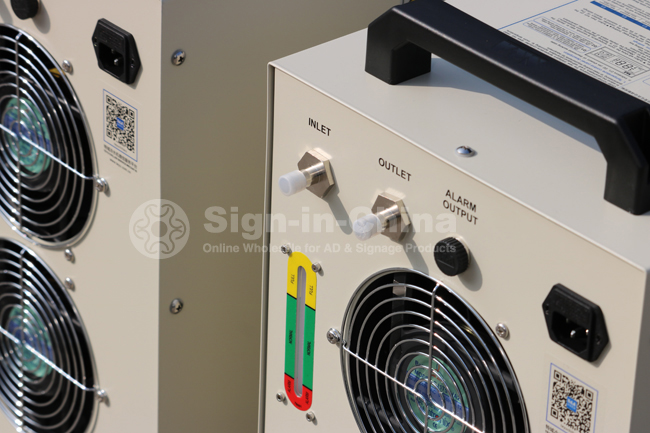

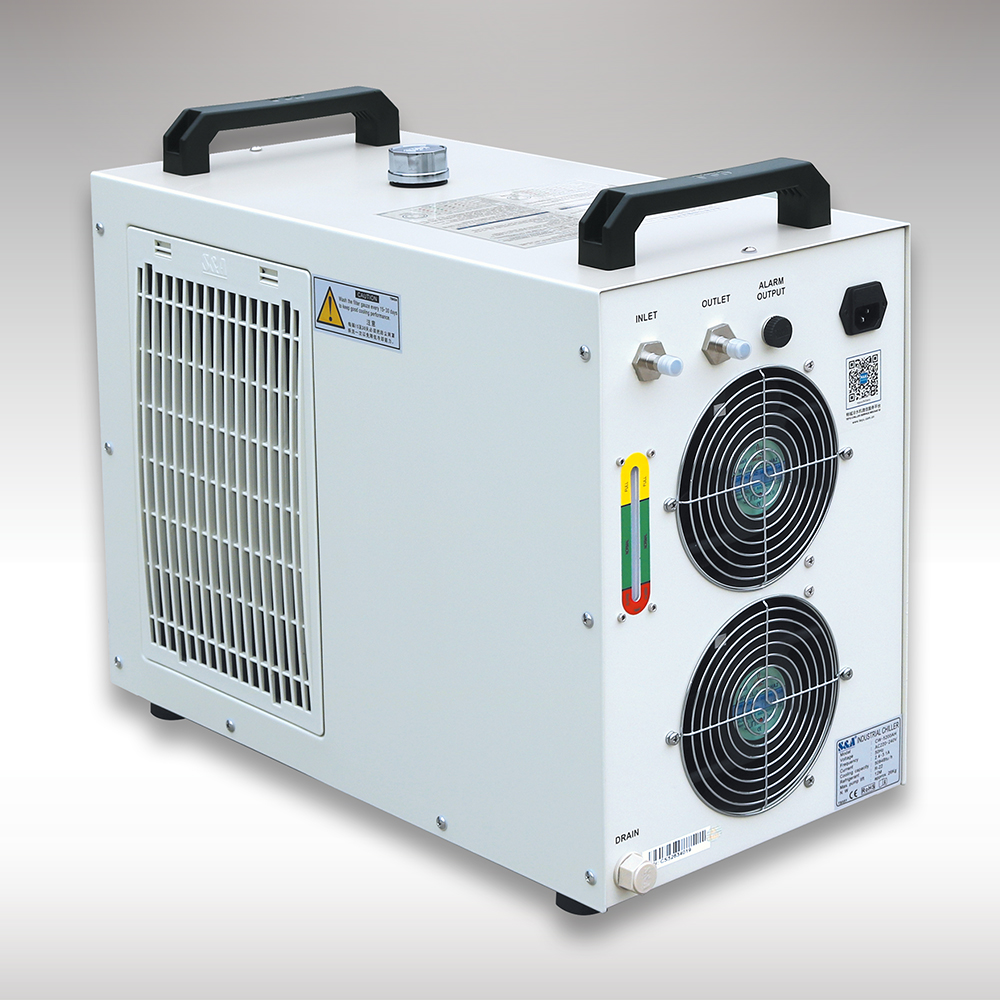

Flow alarm and output ports:
In order to guarantee the equipment will not be damaged while cooling water circulation is out of control, CW-5200series chillers possesses an unique low flow alarm protection.

The cooling water circulation loop alarm causes and the work of the state table

Note: The flow alarm is connected to the normally open relay and normally closed relay contacts, requiring operating current less than 5A, working voltage less than 300V.

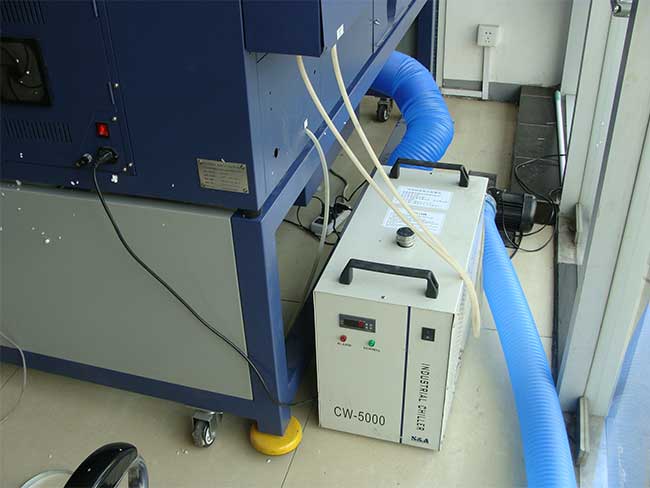

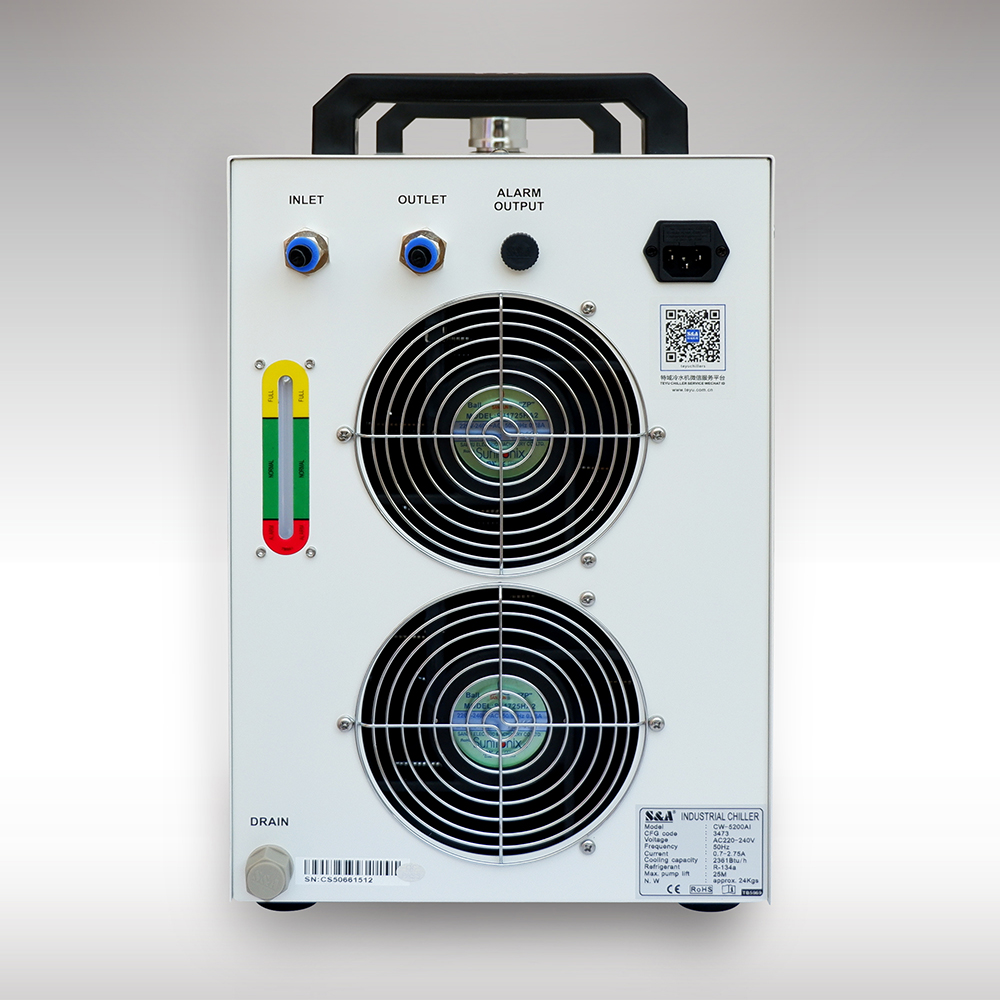

Fill the water tank with purified water. Connect the water inlet of the water tank to the water outlet of the laser machine and connect the water outlet of the water tank to the water inlet of the laser machine. Connect the signal line of the water tank with that of the laser machine. Please see pictures below.

Industrial cooling machine’s installation is very simple, the new machine for the first time using, you can install it as following steps.
A.Open the package to check if the machine is intact and all the necessary Accessories are completed.
B.Open the injection port to feed cooling water.

Observing the water level gauge and adding water slowly, be careful not to have the water overflowed! For the cooling of carbon steel equipment, the water should be added an appropriate amount of anti - corrosion agentia. Working in cold north area, it’s better to use noncorrosive antifreeze fluid.

C.According to system conditions, please connect the water inlet and outlet pipe well.
D.Plug in power, turn on the power switch. (Do not start up without water in the water tank!)

(1) Power switch turned on, the circulation pump of the chiller starts working. The first time of operating may cause more bubbles in the pipe leading to a flow alarming occasionally, but running for a few minutes later, it will go back to normal.

(2) After the first boot, you must immediately check whether the water pipe leaks.

(3) Power switched on, if the water temperature is below the set figure, it is normal that fans and other components of the machine do not work. The temperature controller will automatically control the working conditions of the compressor, magnetic valve, fans and other parts based on the set controlling parameters.

(4) As it takes a longer time to start the compressor and other components, according to different conditions, the time is range from seconds to minutes, so do not turn off the power and again on frequently.

E.Check the water level in the water tank.

The first startup of the new chiller empties the air in the water pipe, leading a slight water level decline, but in order to keep the water level in the green area, it’s allowed to add adequate water again. Please observe and record the current water level, and inspect it again after the chiller running for a period of time, if the water level drops obviously, please re-inspect the water pipeline leakage.

F.Adjust parameters of temperature controller.

 CW-5000 series use an intelligent thermostat. Normally users do not need to adjust it. If it is really necessary, please refer to “Operating status and parameters adjustment.”


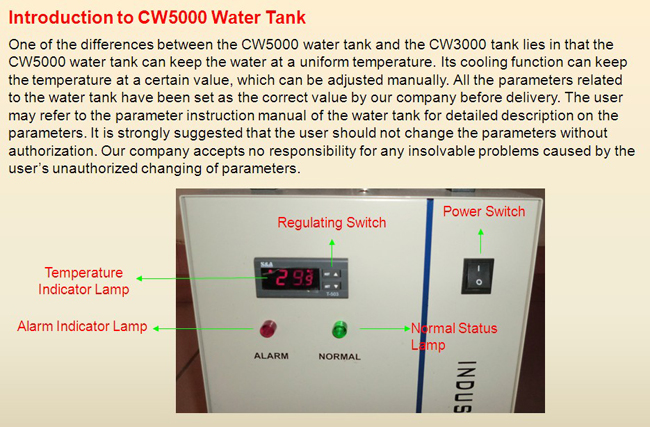

One of the differences between the CW5200 water tank and the cw3000 tank lies in that the CW5200 water tank can keep the water at a uniform temperature. Its cooling function can keep the temperature at a certain value, which can be adjusted manually. All the parameters related to the water tank have been set as the correct value by our company before delivery. The user may refer to the parameter instruction manual of the water tank for detailed description on the parameters. It is strongly suggested that the user should not change the parameters without authorization. Our company accepts no responsibility for any insolvable problems caused by the user’s unauthorized changing of parameters

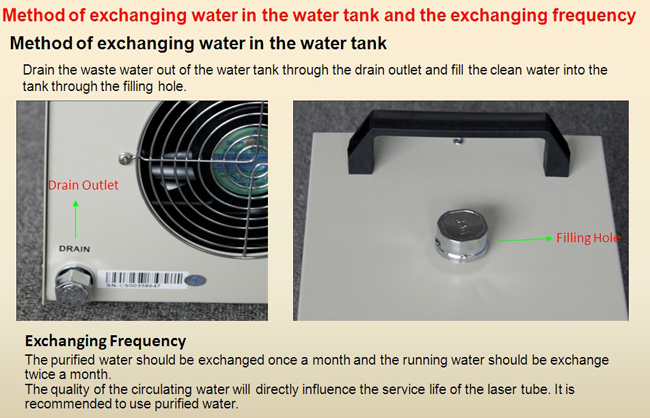

Maintenance
Cooling machine used in long term, you should open the machine and clean the dust in order to ensure good heat dissipation.
You can use non – corrosive antifreeze if you are in the northern cold regions.

Cautions
1. Please ensure that the power supply and electrical outlet are in good contact and the earth wire must be firmly grounded! Although the average operating current of the chiller is small, but the instantaneous operating current could be up to 6 ~ 10amps sometimes (The instantaneous operating current of models of AC110V power supply are possible to be up to 10 ~ 15amps).

2. Please make sure there is a stable and normal voltage for the working chiller! As the refrigeration compressor is more sensitive to the power supply and voltage, so the operating voltage of our standard product is of 200 ~ 250V (110V model is of 100 ~130V). If you do need a wider operating voltage range, customization is available for us.

3. To protect the pump, it’s strictly forbidden to run the chiller without having water in the storage water tank! The new machine is packed after draining whole water in the tank, so please make sure the tank has water inside before machine starting, otherwise it’s easily to have the pump damaged. When the water level is below the green (NORMAL) range of the water level gauge, the cooling capacity of our chiller will go down slightly. Hence please ensure the water level is within the green (NORMAL) range. To drain through circulating pump is strictly prohibited!

4. Please be sure that the air inlet and air outlet are in good ventilation! There must be at least 30cm from obstructions to the air outlet which is in the back of the cooler, and should leave at least 8cm between obstructions and the side air inlet.

5. The filter screen must be regularly cleaned! It’s essential to unpick and wash the dust gauze, or the serious blockage will cause breakdown to the chiller.

6. Please pay attention to the effect of the condensate water! With greater ambient humidity, when the water temperature is lower than the ambient temperature, the condensate water will generate on the surface of water circular pipes and the cooled components. If above circumstance appears, it is recommended to set a higher water temperature or keep pipes and cooled parts warm.

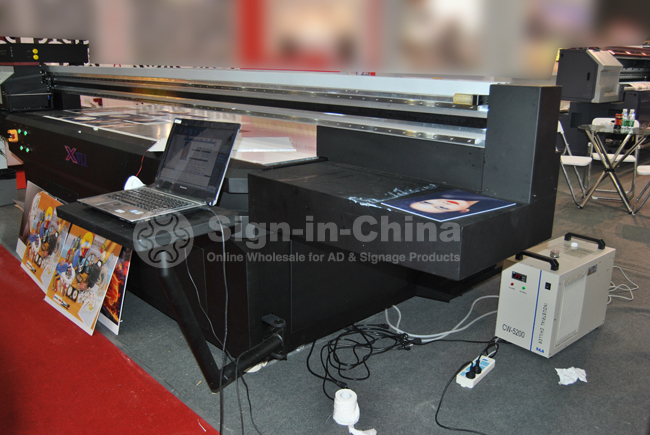

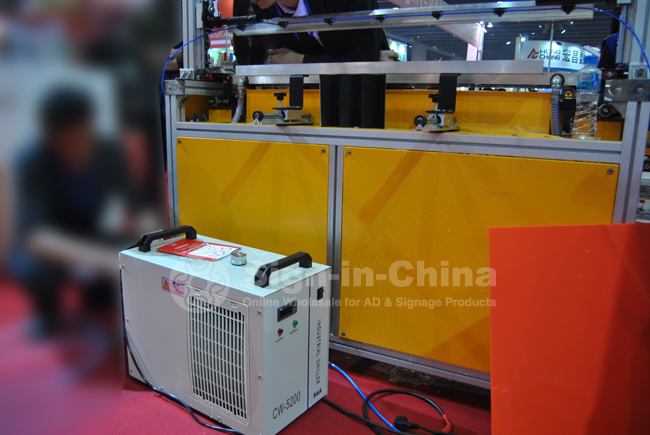

Application:

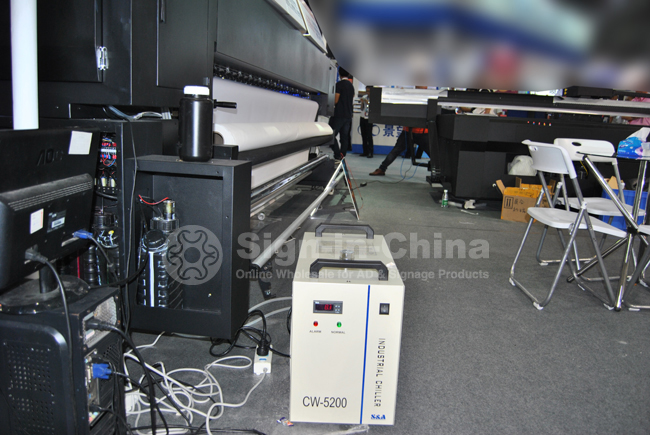

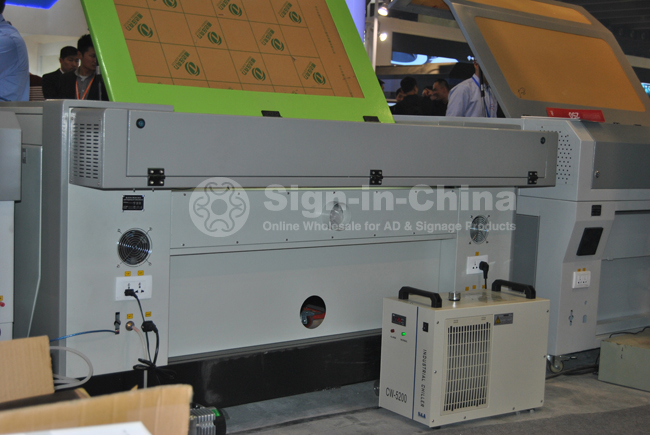

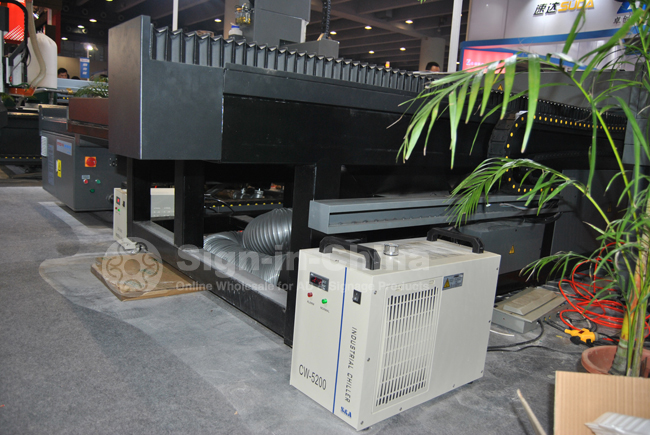

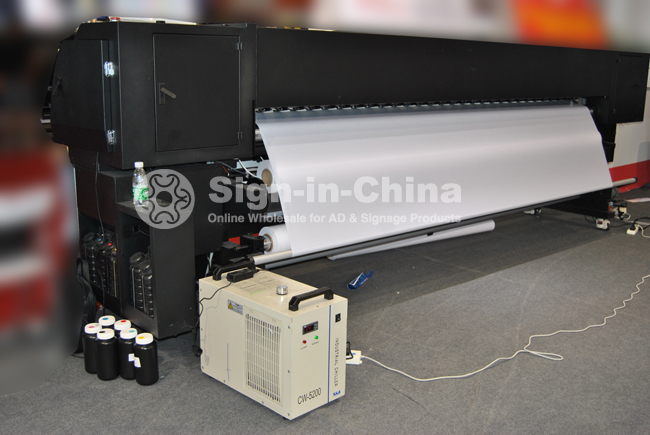

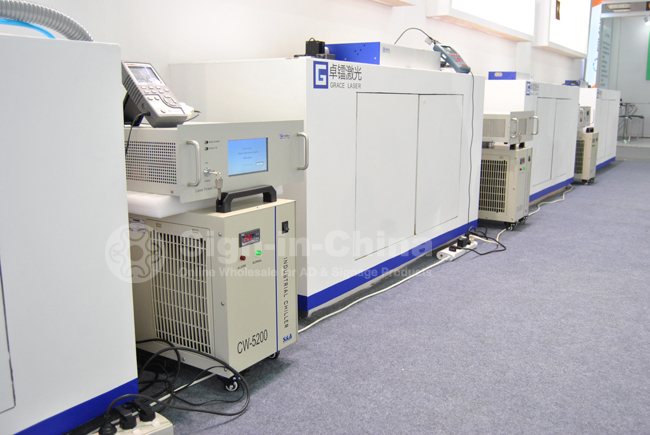

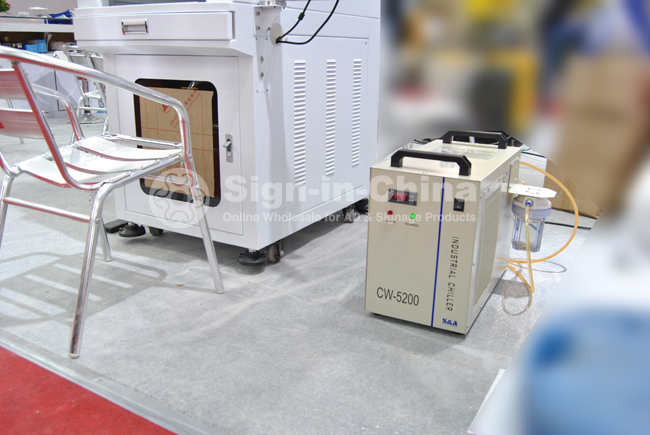

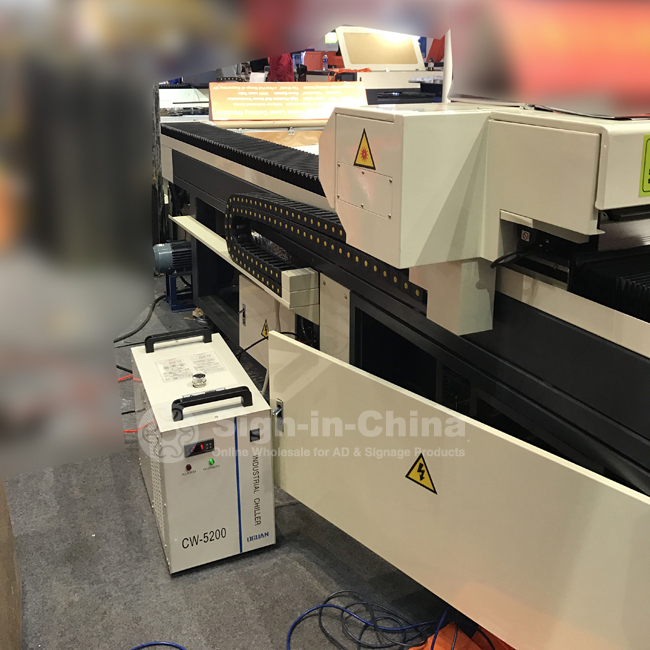

CW5200 water chiller for cooling Co2 laser cutting machine

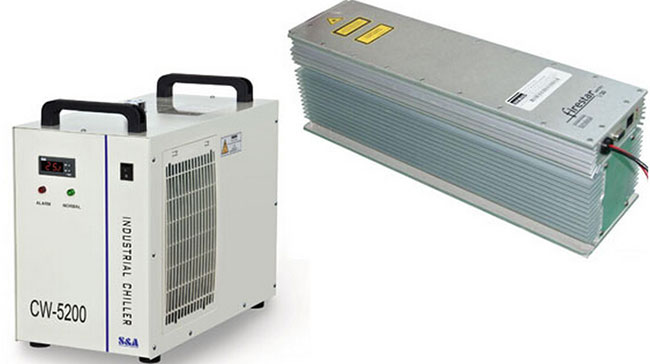

CW5200 water chiller for cooling SYNRAD RF metal lasers

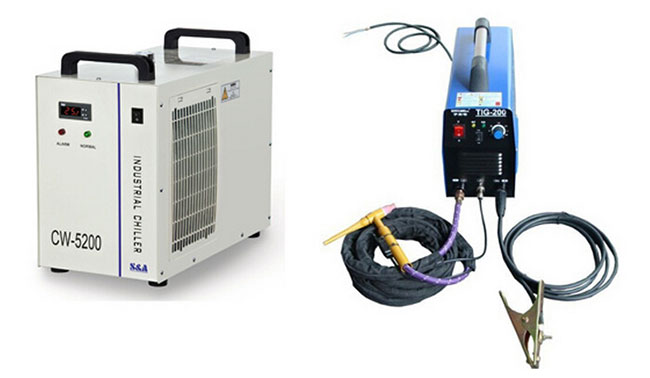

CW5200 water chiller for cooling argon arc welding clamp

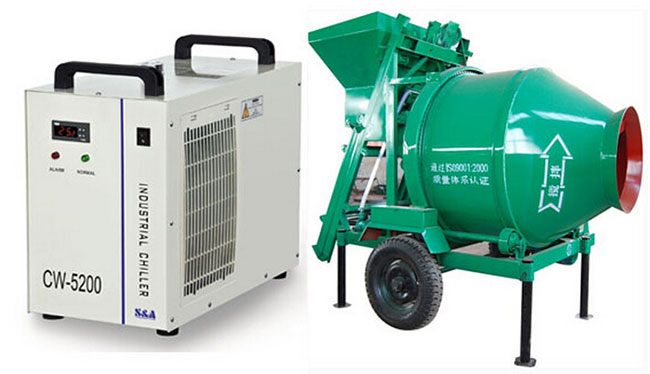

CW5200 water chiller for cooling blender

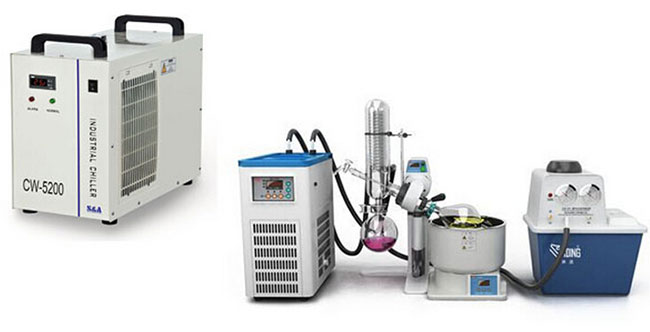

CW5200 water chiller for cooling lab vacuum pump


















Quality Report:

Two-year Comprehensive Warranty for the Equipment & Machine of Sign-in-China.com

Sign-in-China.com guarantees that all the products are qualified in quality and the technical specifications have reached the factory inspection of OQC (Outgoing Quality Control).

(1)  The entire body of all equipment or machines (except consumables) we sell is provided with a 2 - year warranty.
(2)  Maintenance methods in which two options (either - or) available for the buyer:
· Normal: The buyer sends back a problematic part and Sign-in-China.com will identify whether repair or change a new one.
· Urgent: The buyer purchases a replacement and meanwhile sends back the problematic part, and then Sign-in-China.com will identify and decide whether refund the replacement.
(3)  The Start Time of Warranty: Once such an equipment is shipped out.
(4)  For maintenance service, please provide the invoice of purchase order (on which it indicates the equipment or machine model number, name and sold date), equipment or machine serial number, trouble or breakdown description, and better attach photo (s) or video (s).
(5)  The purchase order PI is the essential proof for maintenance which ensures your legal interest and right. Please keep it properly after purchase.

Additional announcement, the following situations are not covered by the 2-year warranty:

(1)  Any product or commodity which was not sold out by Sign-in-China.com (The model number and serial number are not issued by Sign-in-China.com)
(2)  Any unauthorized repairing, mistake in use, damage, negligence, misuse, accident, change or modification, quality problem caused by incorrect installation;
(3)  Tearing up or modifying of the label or the serial number of such an equipment or machine;
(4)  Normal consumption or wearing off such nature usage, wearing down or aging of the cover or shell, plugging or socketing part or unit, etc;
(5)  The using environment (temperature & humidity) did not match up the requirement specified in the manual or instruction document;
(6)  The trouble or breakdown caused by incorrect operation or failure in following the operation instructed in the manual or instruction document;
(7)  The parts or software not purchased from Sign-in-China.com;
(8)  The wearing or vulnerable part;
(9)  The breakdown or damage caused by nature disaster or force majeure (Such as earthquake, fire, flood, typhoon, thundering, etc).

For Receiving Equipment or Machine:
Normally, we will provide you the pictures of equipment or machine and its packing before shipping in order to proof such item in good condition without damages. When you receive it, suppose you find damage on external packing, instead of signing acceptance, please open it first and check the item inside the packing if there is any damage. If you find damage, you can definitely refuse signing acceptance and then claim loss from the express service company. At the same time, please take photos of the damaged packing and item, and contact us (Either our sales consultant whom you know or send email to “service@sign-in-china.com”). Hence, our people will assist you in handling such dispute
